  Wilkinson Printing Liquidation Post Press

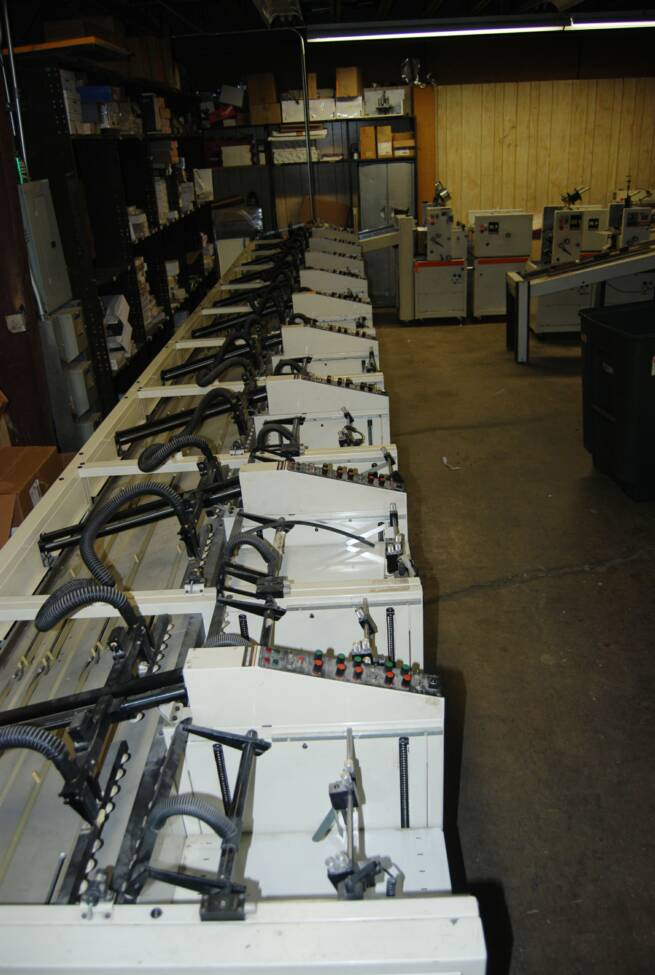

Machine Collator
Manufacturer BOURG
Type Modulen
17 Station with Stitch Fold and Trim
AGRP,
Paper size range :
MAX : 450 mm x 640 mm (17.7” x 25”)
MIN : 297 mm x 210 mm (11.7” x 8.25”)
Lower set for small size sheets :
MAX : 350 mm x 420 mm (13.75 x 16.5)
MIN : 200 mm x 280 mm (7.85” x 11”)
A retractable “finger” is actually jogging
each sheet immediately after deposition
on conveyor.
Collating speed: With “jogging fingers
actuated” and one sheet per station:
Maximum 1100 sets/h. If “jogging fingers”
are not used and no multi-pick :
Maximum 2200 sets/h.
Multi-pick program on each station.
Capacity max: 720 mm (28.3”).
   Assets are sold on a first come basis, no reasonable offer refused, all items must be sold
You must close one Thumbnail to open another.

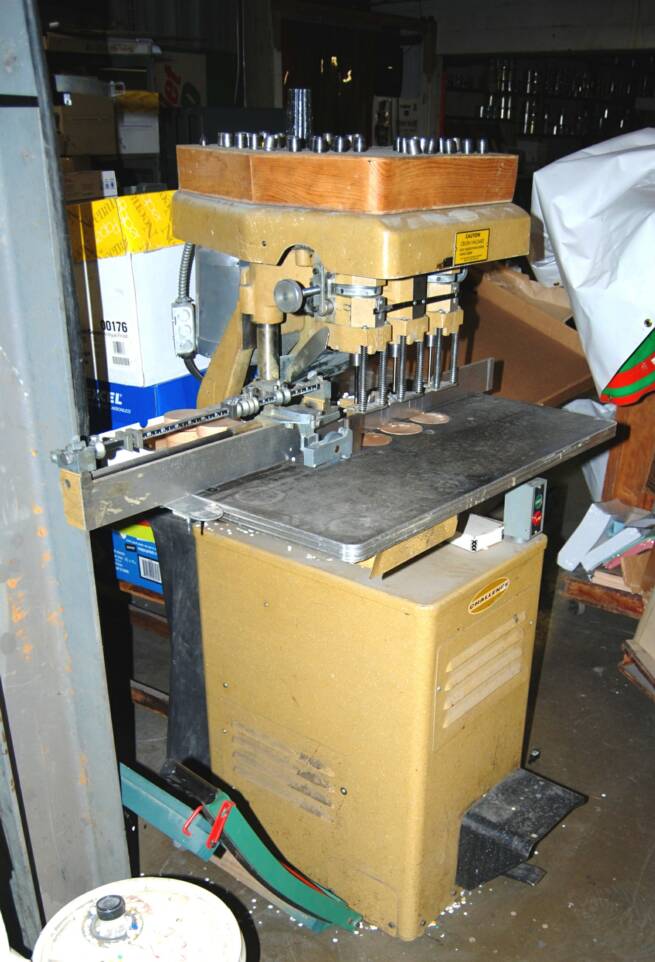

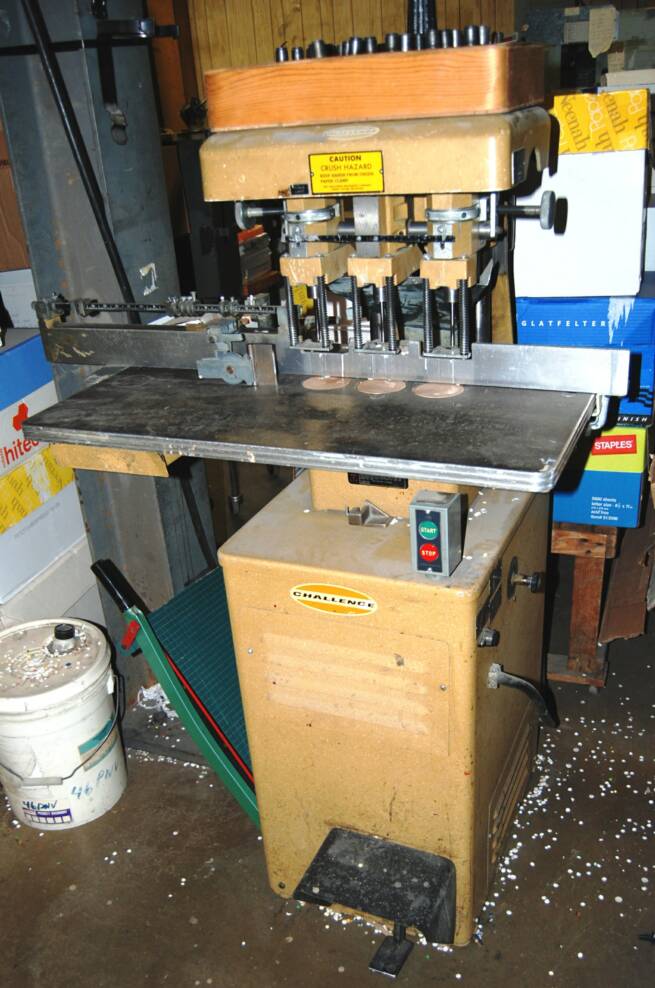

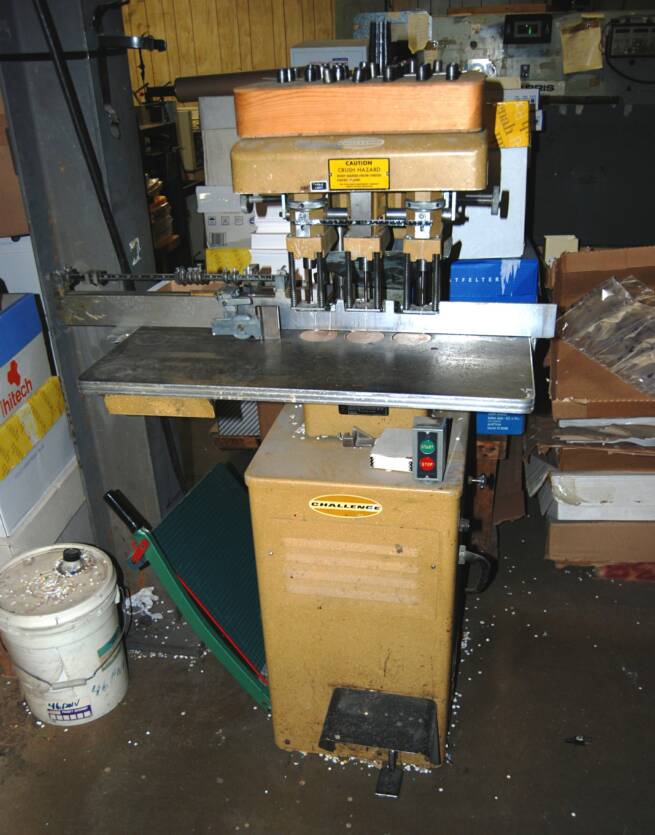

              CHALLENGE EH3A 3 Spindle Drill

 - Powerful Hydraulic Operation - 2-1/2" Drilling Capacity
- Fast and Easy Head Adjustments - Flexible Backgauge Adjustments
- Automatic Drill Return - Auto-Trip Side Guide
 S p e c i f i c a t i o n s
Number of Drill Heads 3
Range Between Drills 2-3/4" to 4-1/2" / 7 - 11 cm
Range Between Outside Drills 5-1/2" to 9" / 14 - 23 cm
Maximum Drilling Capacity 2-1/2" / 63 mm
Strokes per Minute (adjustable) Up to 18
Backgauge Adjustment 0 to 4-1/2" / 0 to 11 cm
Vertical Adjustment of Individual Heads 1/4" / 6 mm
DIMENSIONS
Table Height 37" / 94 cm
Overall Height 59-1/4" / 151 cm
Shipping Weight (approximate) 570 lbs / 259 kg
ELECTRICAL
1 Phase, 60 Hz, AC.  Pump: 1/2 HP.   Spindle Motor: 1 HP.
208 Volts, 18 Amps (service size 30 Amps)




   Assets are sold on a first come basis, no reasonable offer refused, all items must be sold

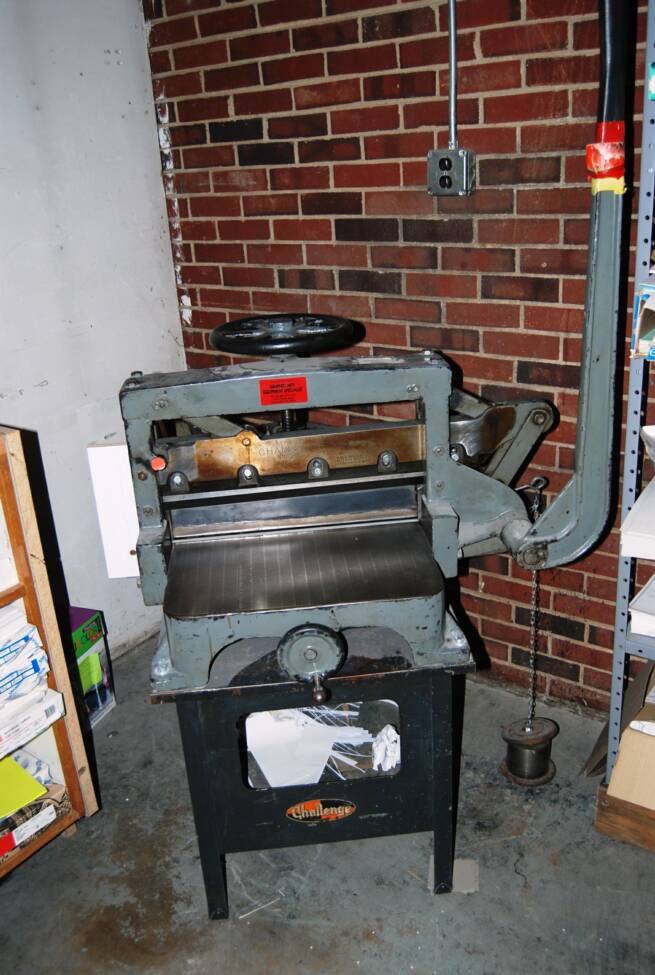

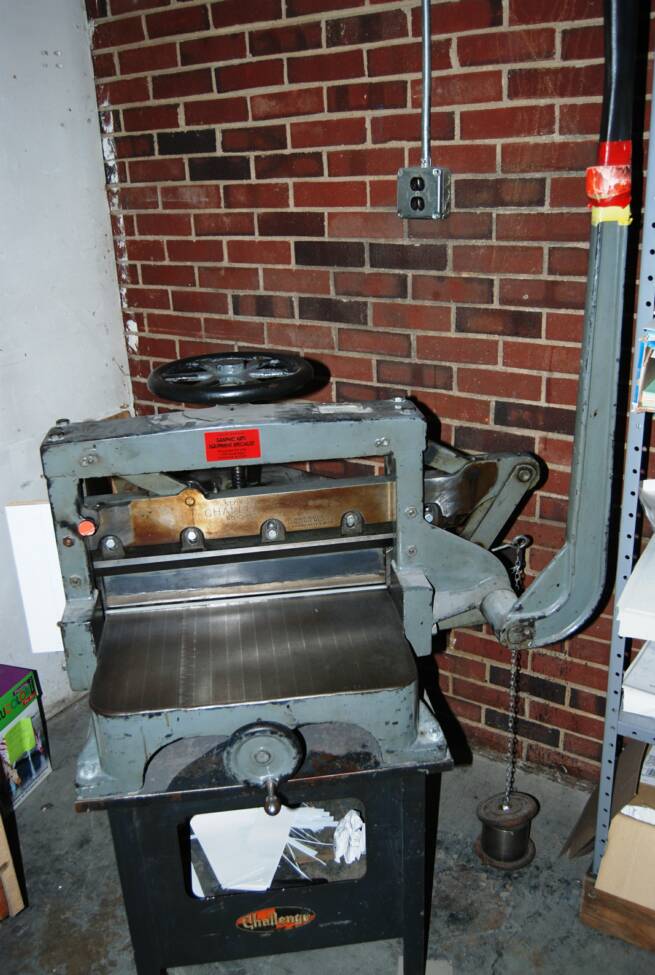

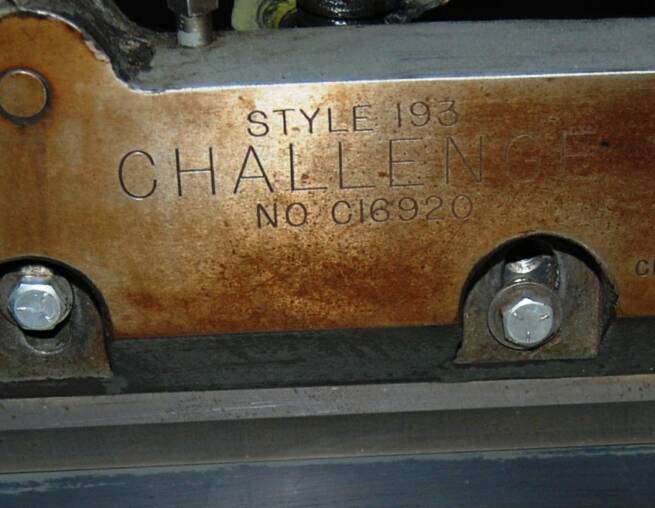

CHALLENGE 19" Manual Cutter
Manual Wheel Clamp
Lever Cut
You must close one Thumbnail to open another.
   Assets are sold on a first come basis, no reasonable offer refused, all items must be sold

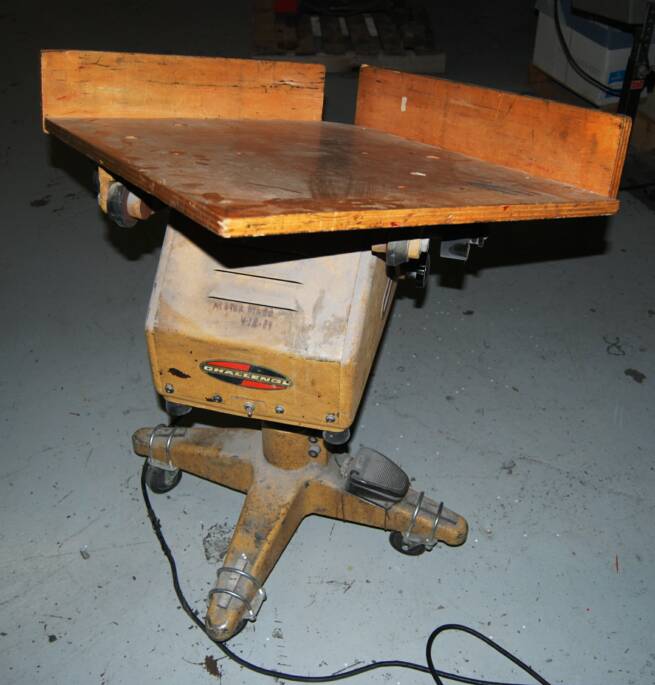

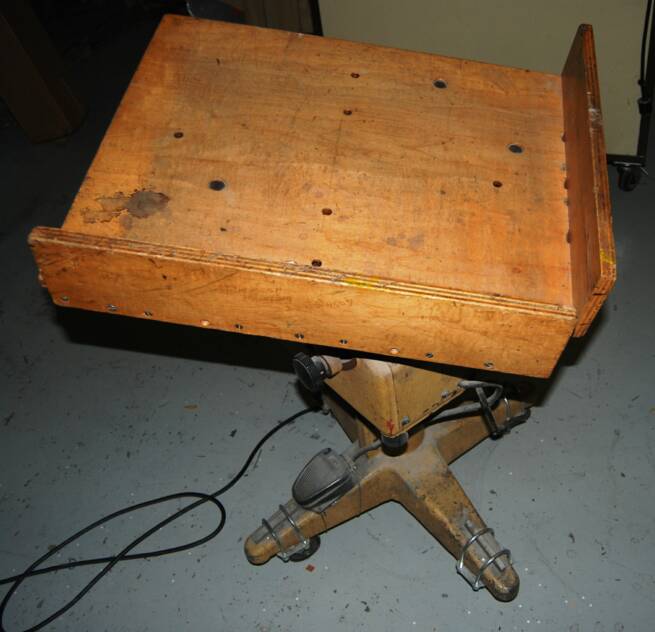

CHALLENGE 14 x 20 Large Format Jogger
Adjustable Stand, 110V
   Assets are sold on a first come basis, no reasonable offer refused, all items must be sold

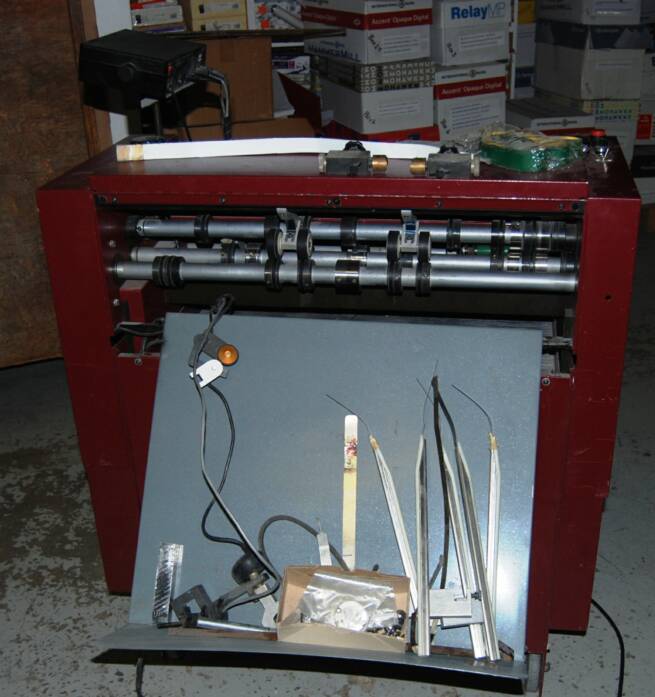

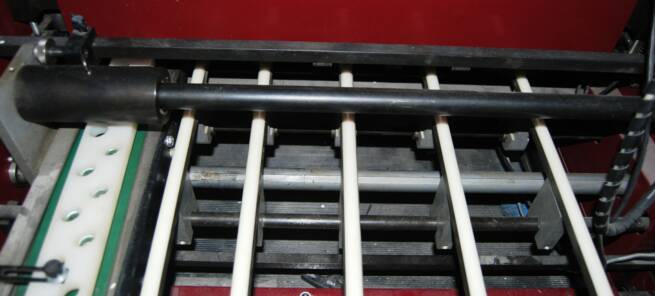

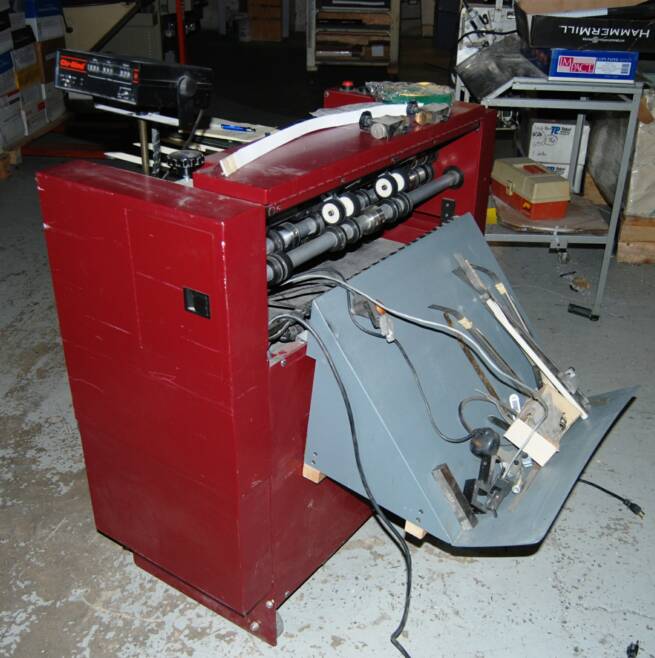

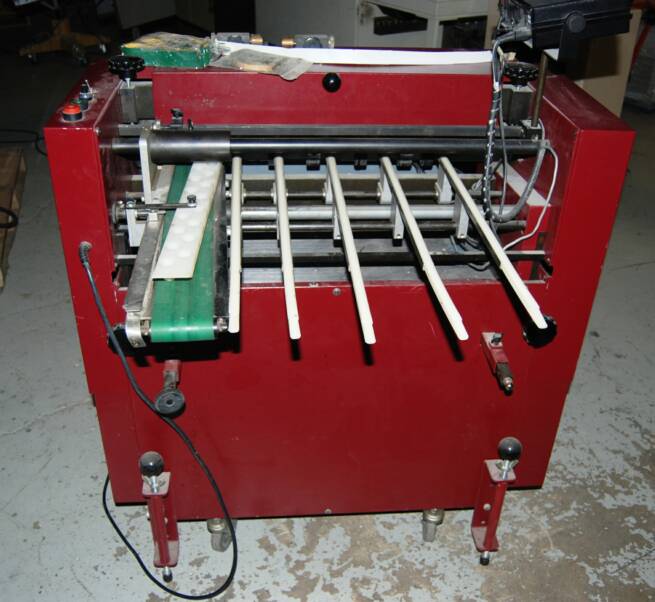

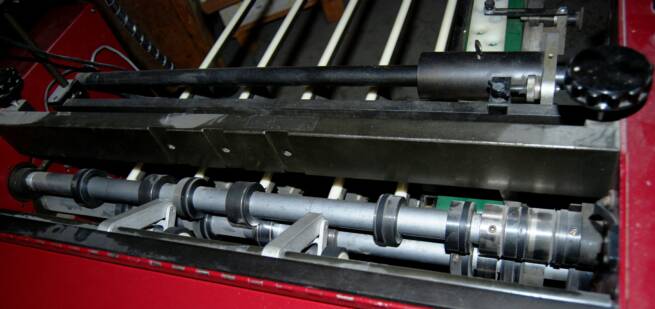

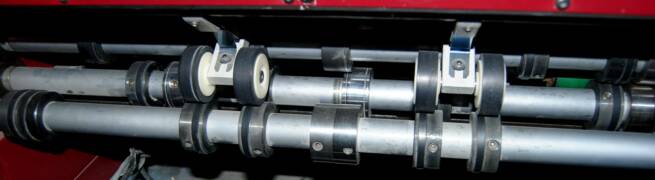

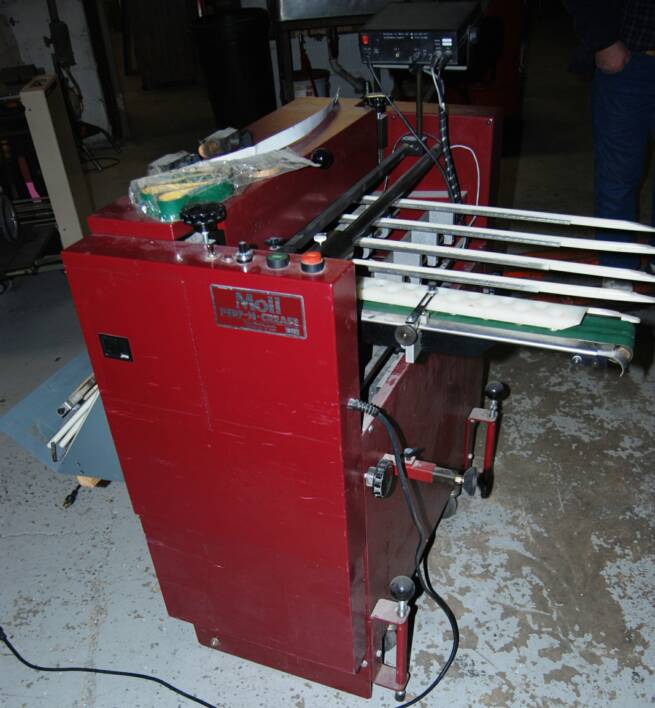

DICK MOLL Perf and Crease

The Perf-n-Crease has a modular design to allow ease of use with Moll feeders and other units. It can handle versatile perforating for cardstock of up to 72cm, 28" widths. Comes complete with side register in-feed table.



You must close one Thumbnail to open another.
   Assets are sold on a first come basis, no reasonable offer refused, all items must be sold
You must close one Thumbnail to open another.

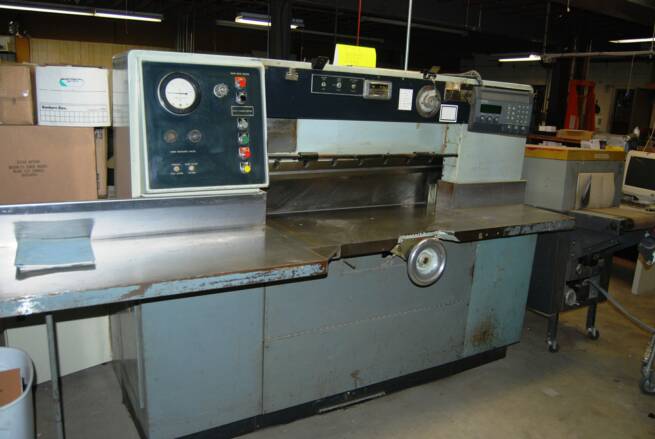

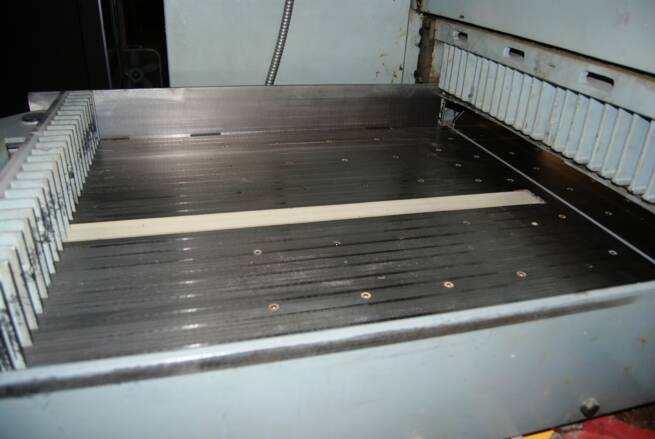

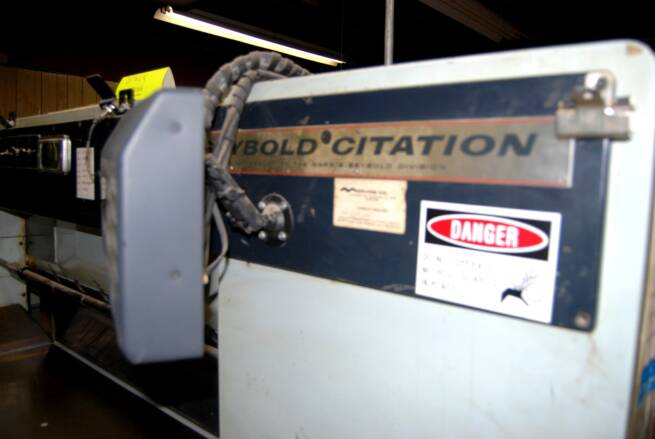

HARRIS SEYBOLD 42" Paper Cutter
Hydraulic Clamp and Cut
Air Bed
5500 lbs clamp pressure
Cut Line Light

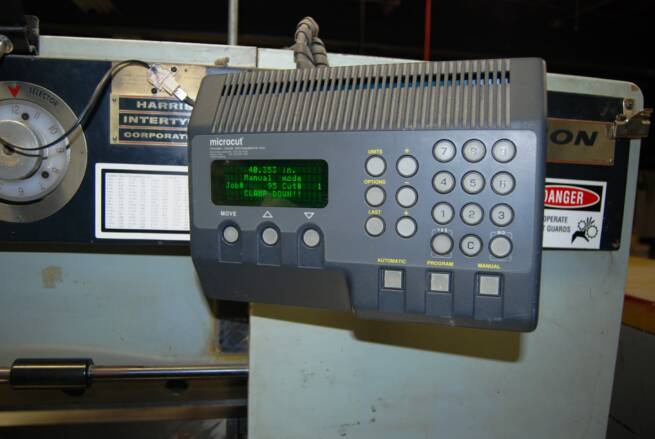

Microcut Program, 9999 program cuts
   Assets are sold on a first come basis, no reasonable offer refused, all items must be sold
   Assets are sold on a first come basis, no reasonable offer refused, all items must be sold

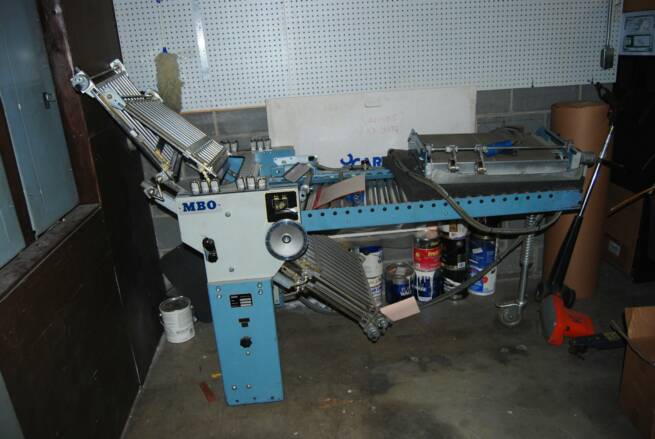

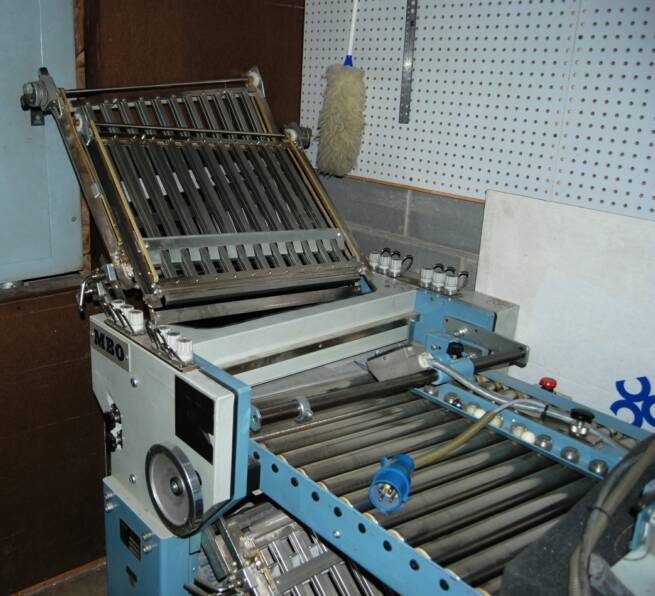

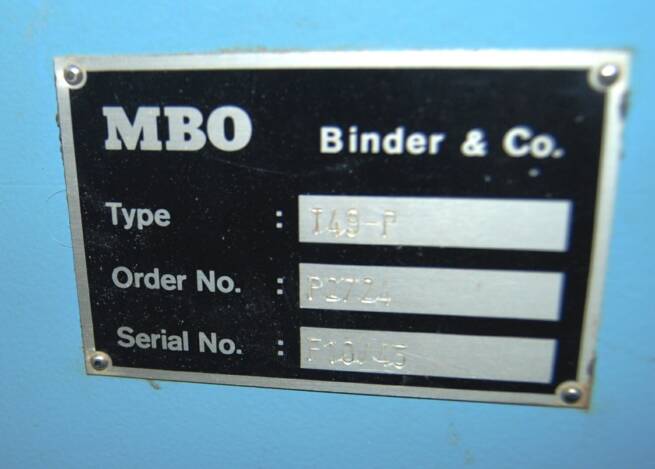

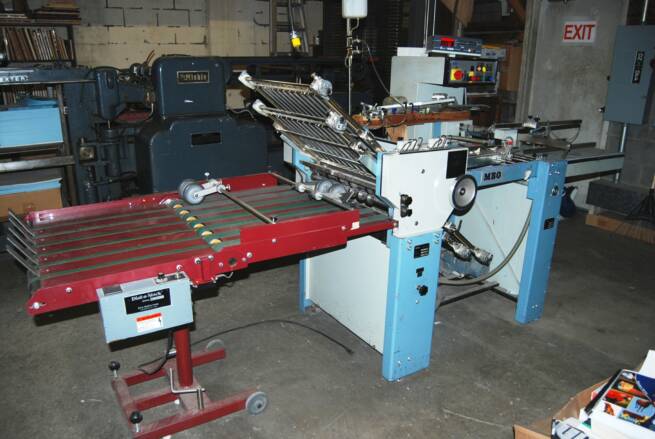

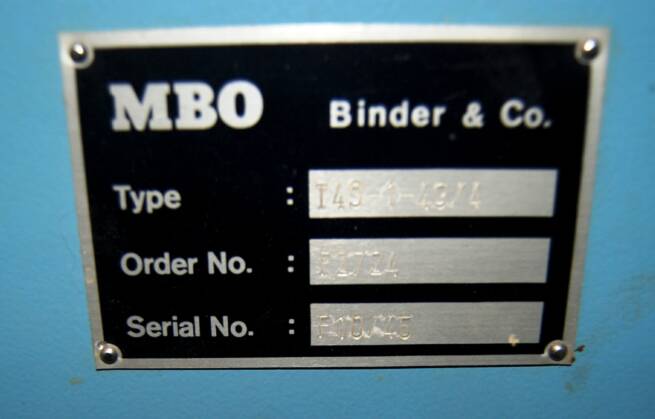

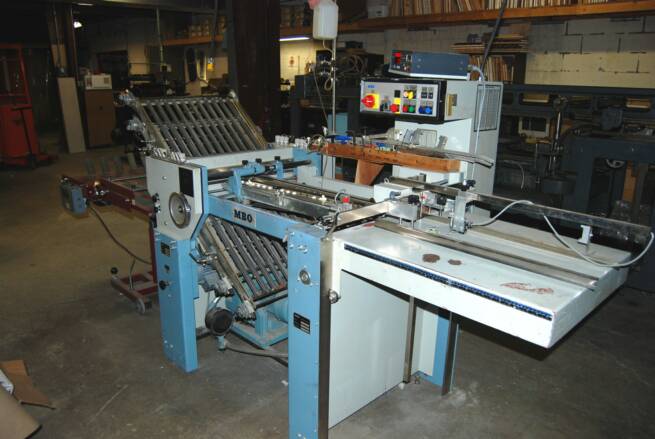

Folding machine

Make MBO
Model T49/44
Year 1986
Buckles 4 + 4 buckles
Papersize 20x28
Feeder airfeeder with pump
Equipment Flatpile feeder, band delivery, digital counter, noisehoods
Controler MBO Batch Counter

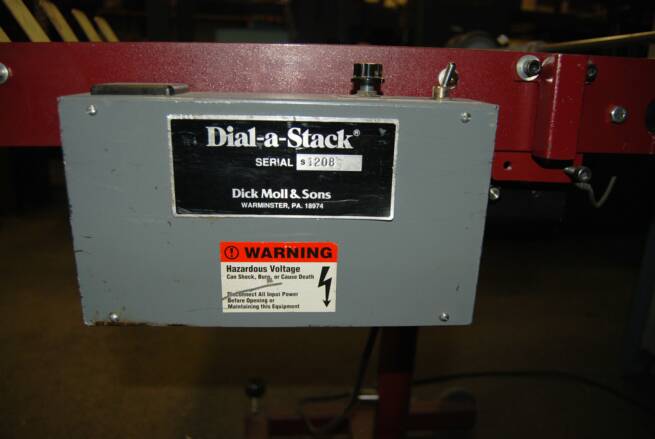

Stacker Dick Moll Dial a Stack


You must close one Thumbnail to open another.
   Assets are sold on a first come basis, no reasonable offer refused, all items must be sold
   Assets are sold on a first come basis, no reasonable offer refused, all items must be sold

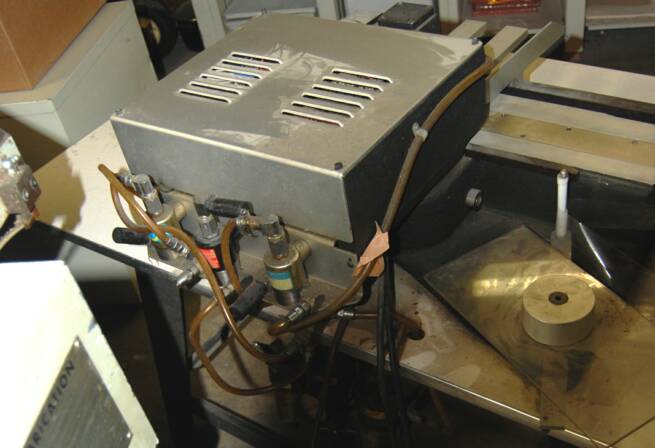

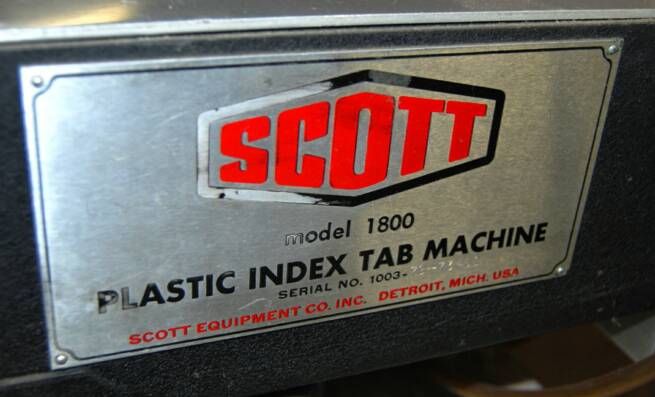

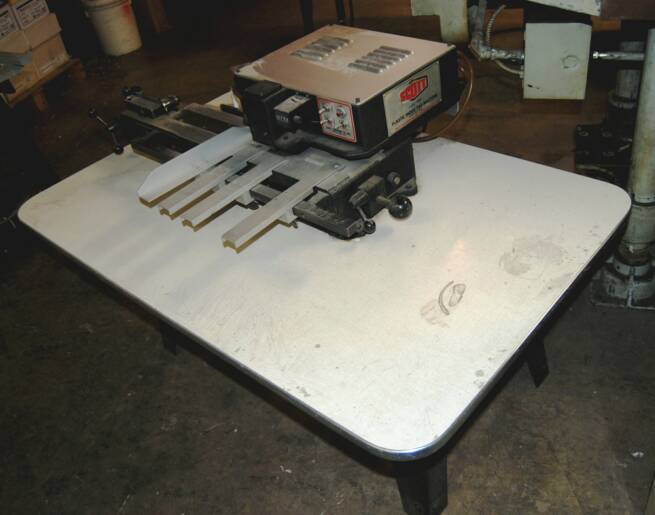

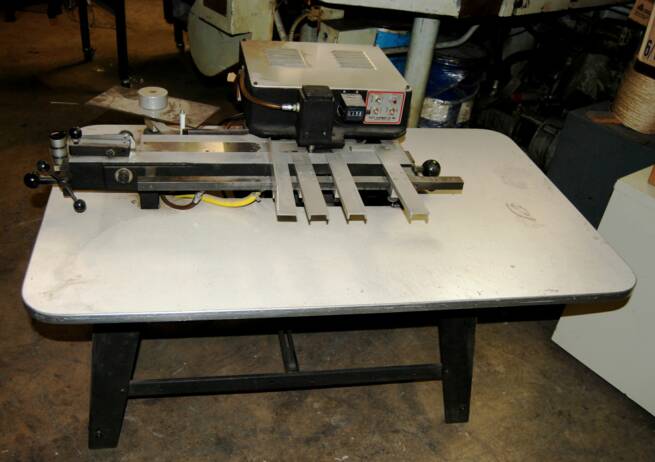

SCOTT 1800 Tab Laminator
Speed Up to 5,000 tabs per hour
Sheet Size Maximum: 15 inches with a half inch inset on a 1 inch tab (381mm with a 12.7mm inset cut on a 25.4mm tab) Minimum: any width x 5-1/2 inches (139.7mm minimum depth)
Paper Weight 6-point to 25-point paper
Tab Cut Size 6 inches (152.4mm) maximum 1/2 inch (12.7mm) minimum Stepcut: 13-1/2 inches (342.9mm) maximum
Standard Knife Sizes 1/4", 3/8", 1/2", 5/8", 3/4"
Electrical Requirement 0.5 amp, 120 VAC, 50-60 Hz
Air Requirements (ETC requires no air). 2 cubic ft. per minute (944 cubic cm per second) at 80 lbs. pressure. s

   Assets are sold on a first come basis, no reasonable offer refused, all items must be sold
   Assets are sold on a first come basis, no reasonable offer refused, all items must be sold

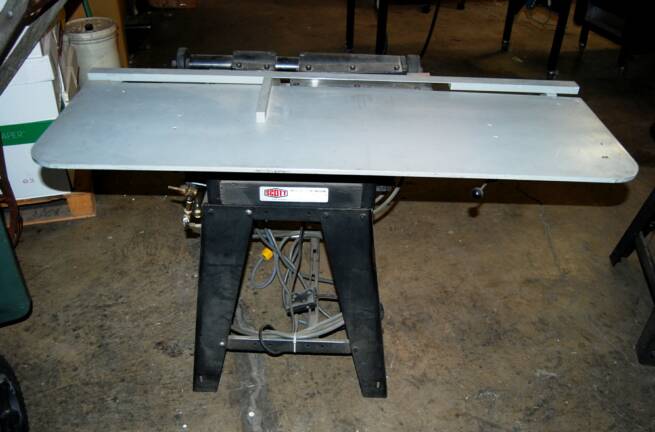

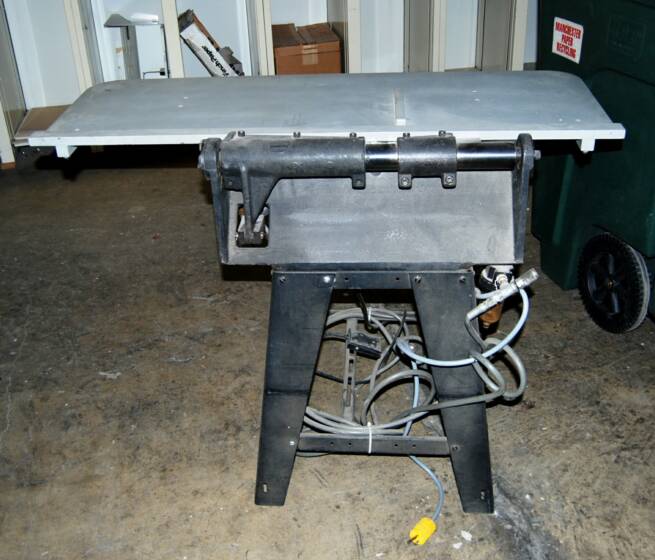

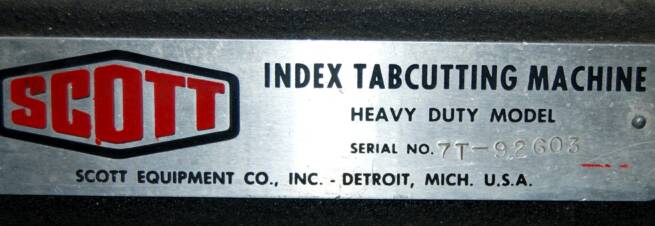

SCOTT Tab Cutter
Speed 2,200 laminated sheets per hour
Sheet Size Maximum: 18 inches (457.2mm) Minimum: 5-1/2 inches (139.7mm)
Paper Weight 6-point to 25-point paper
Plastic Size 1 inch to 5-1/2 inches (25.4mm to 139.7 mm)
Counter 9,999
Electrical Requirement 5 amp, 120 VAC, 50-60hz
Air Requirements 4 cubic ft. per minute (1888 cubic cm per second at 80 lbs. pressure
Table Top 48 inches x 30 inches (1219mm x 762mm)
Table Height (Adjustable) 31-1/2 inches (800mm) maximum 25 inches (635mm) minimum
Shipping Weight 330 lbs. (150kg)

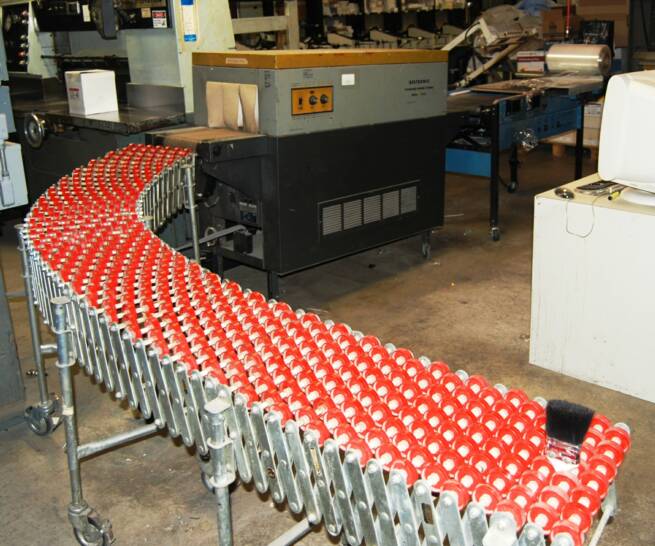

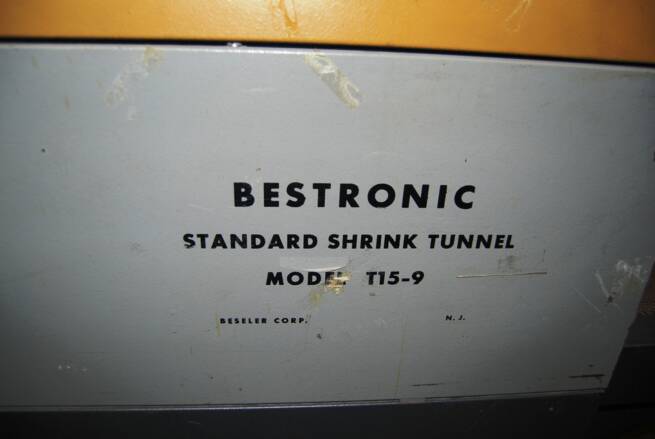

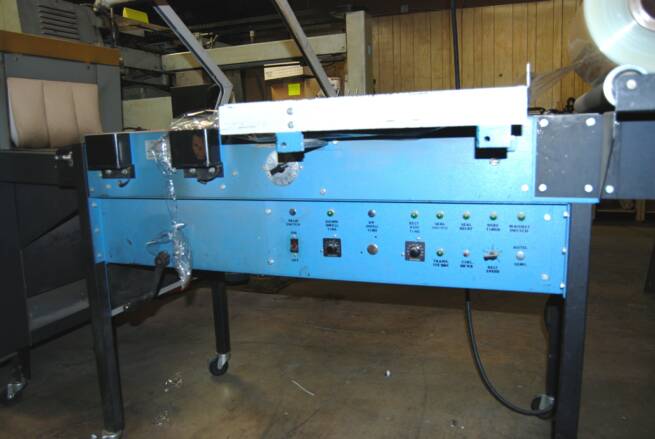

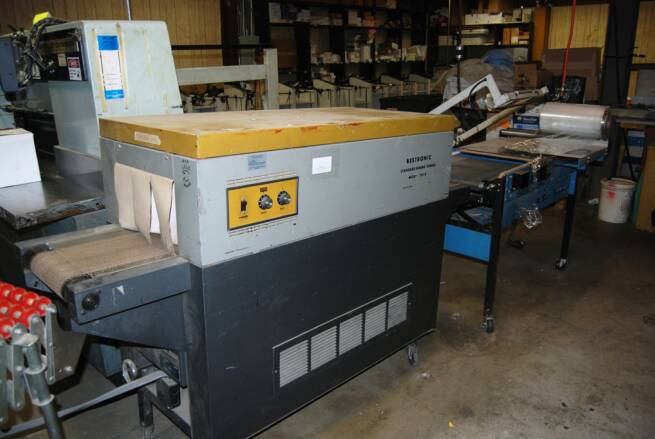

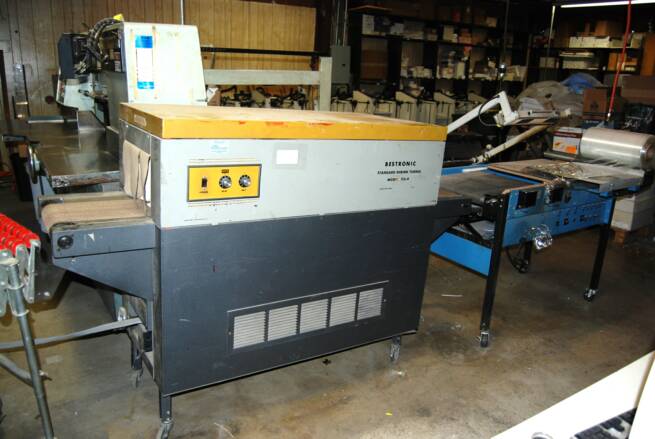

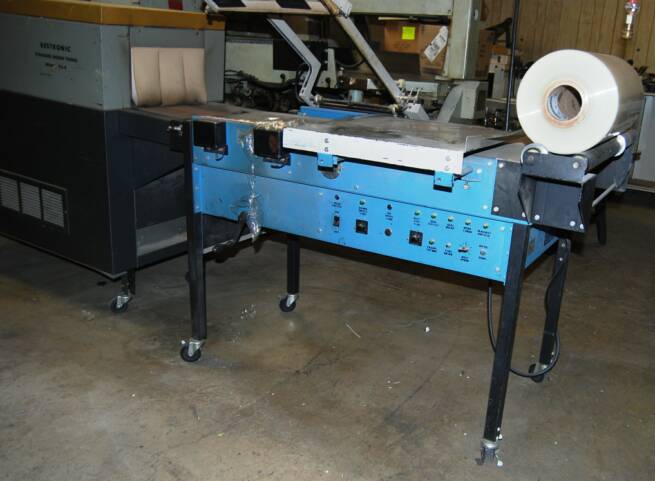

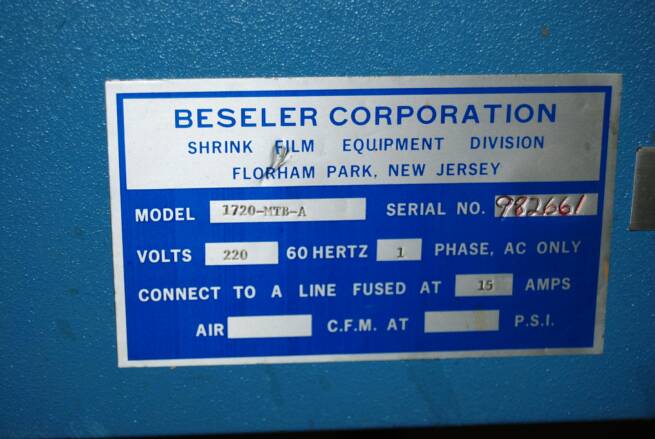

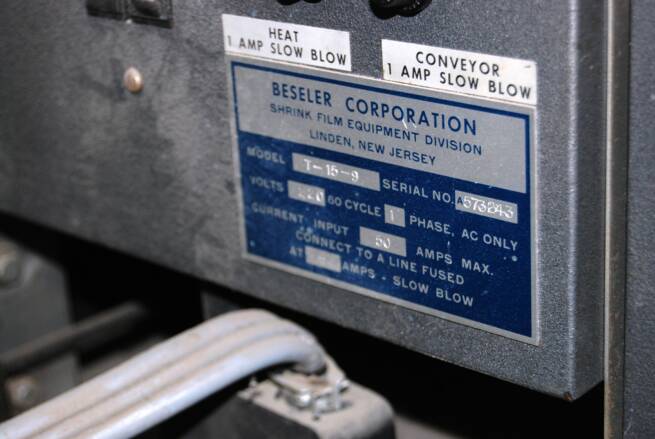

BESSELER SHRINK WRAP SYSTEM
Tunnel Size 15 x 9 x 48
Speed  22  11x17PPM variable speed
Temp Max 450 Degrees
Electricity 220

Sealer Size17x18
Magnetic Hold Down
Adjustable Dwell
Adjustable Timing

Conveyor Size 18" x 24'
Adjustable Scissor Expandable Takeaway.

You must close one Thumbnail to open another.
You must close one Thumbnail to open another.
You must close one Thumbnail to open another.
   Assets are sold on a first come basis, no reasonable offer refused, all items must be sold
   Assets are sold on a first come basis, no reasonable offer refused, all items must be sold

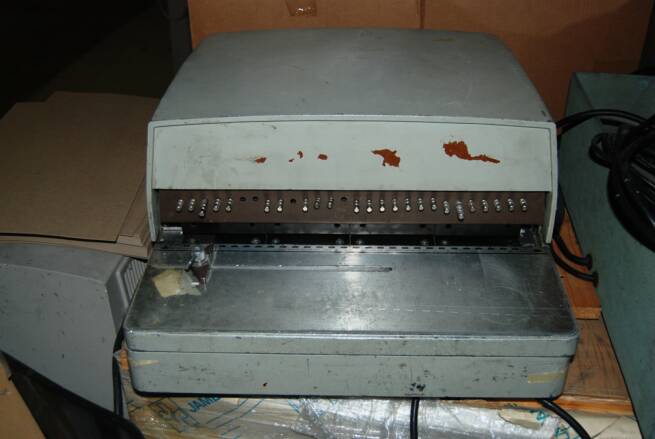

GBC 111 PM

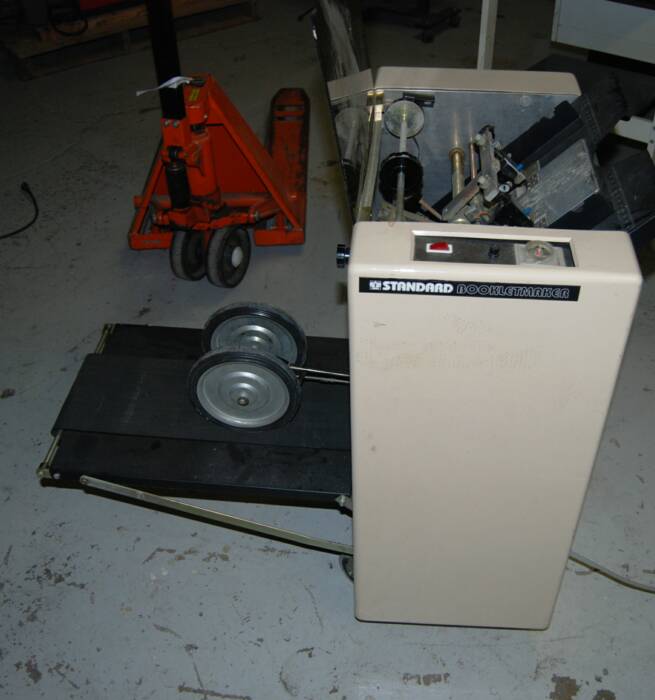

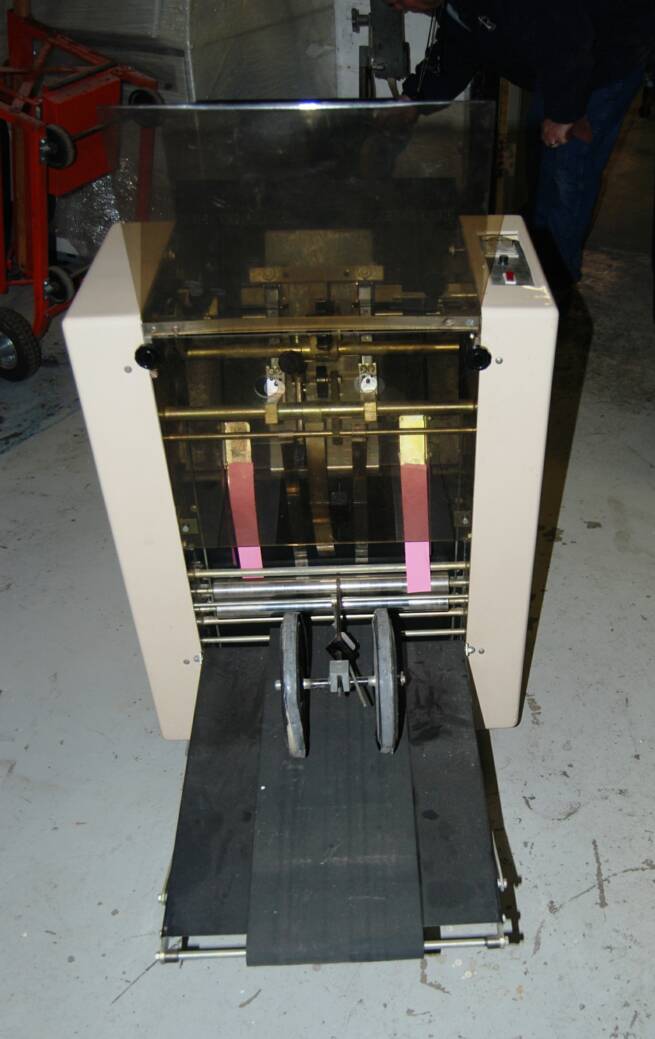

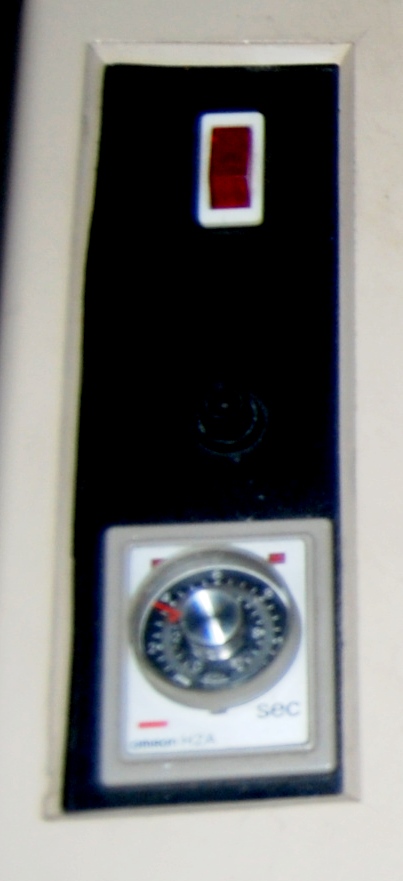

SPRINT BOOKETMAKER
   Assets are sold on a first come basis, no reasonable offer refused, all items must be sold
   Assets are sold on a first come basis, no reasonable offer refused, all items must be sold
   Assets are sold on a first come basis, no reasonable offer refused, all items must be sold
You must close one Thumbnail to open another.
You must close one Thumbnail to open another.

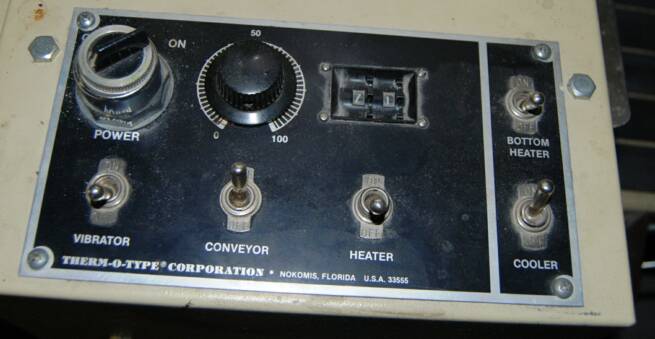

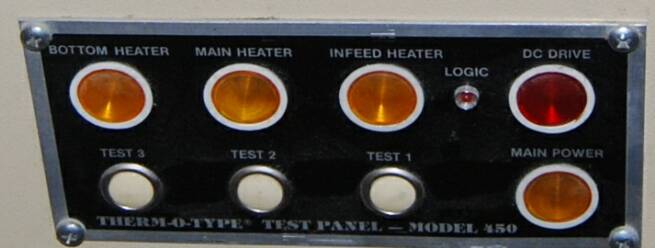

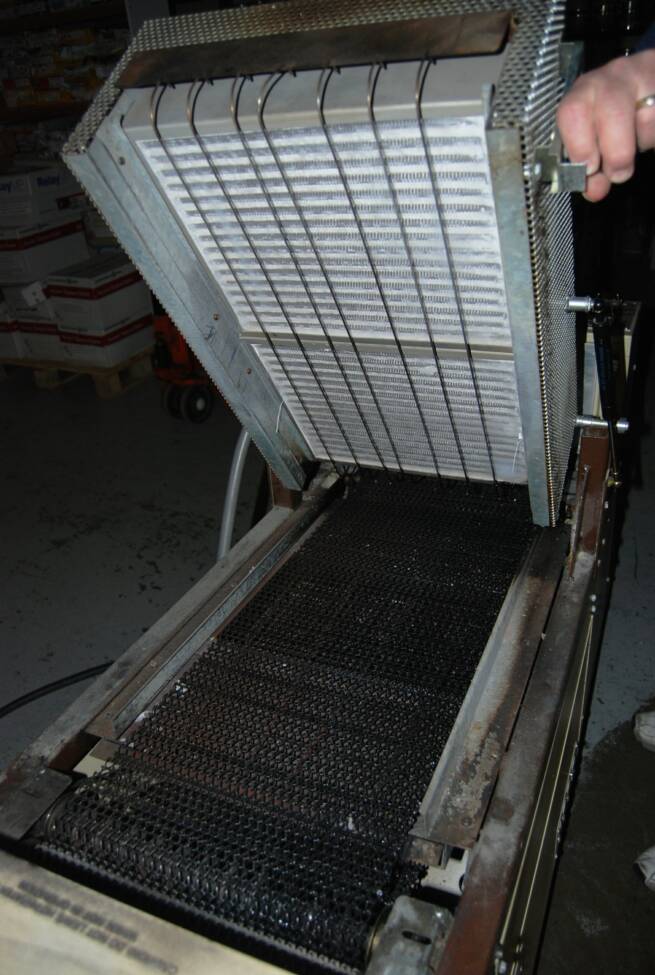

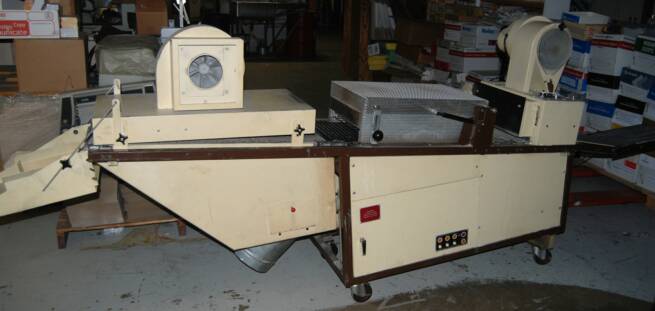

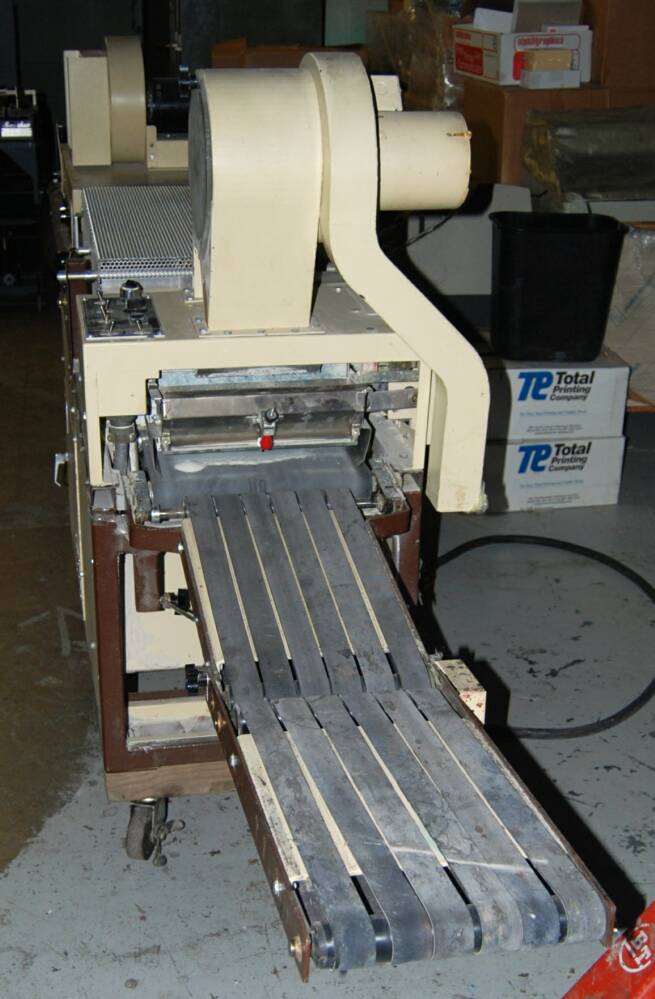

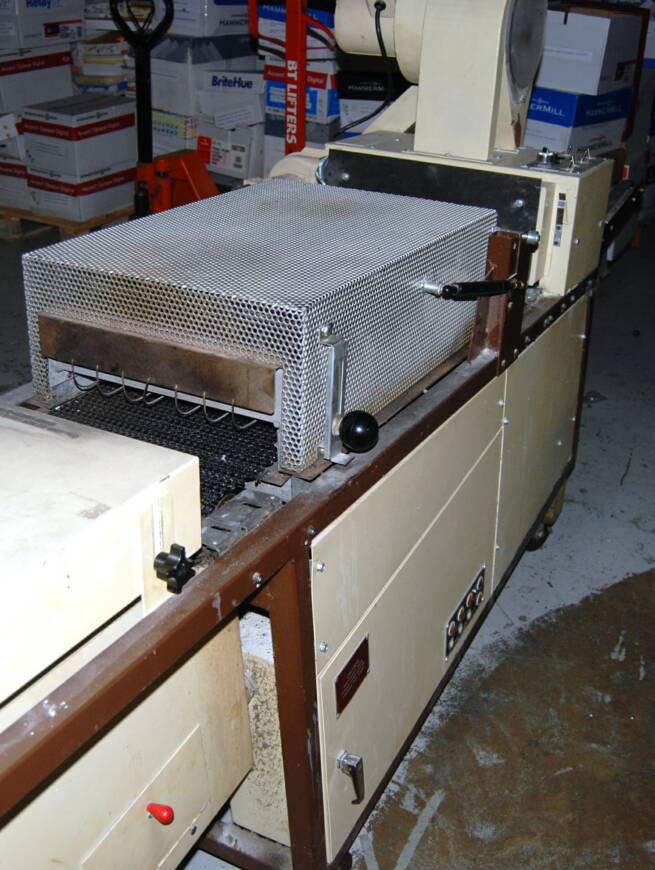

THERMOTYPE 550 Thermograph
Maximum Paper Width12"
  Total Wattage of Heat (2)9,500
  Top Heater TypeVycor IR
  Heater ZonesFull Width
  Patented, Bottom Heater (3)Yes
  Watts Per Inch Across Heater Width (4)760
  Electric Cooling BlowerYes
  Clean Powder System, Needs No BagYes
  "Trackless" Pickup Head WheelsYes
  Patented, Two Sided Thermography PinsYes
  Adjustable InfeedYes
  Cooler FilterYes
  Volts  (8)208
  Amps (9)50/40
  Fully Mobile (large diameter wheels)Yes
  Speed, 20 lb. bond (8 1/2 x 11)5,000
  Speed, 65 lb. cover (8 1/2 x 11)4,000
  Length, Tip to Tip11' 10"

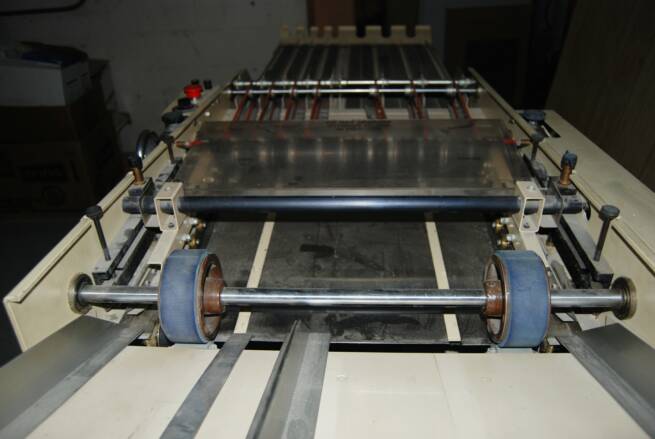

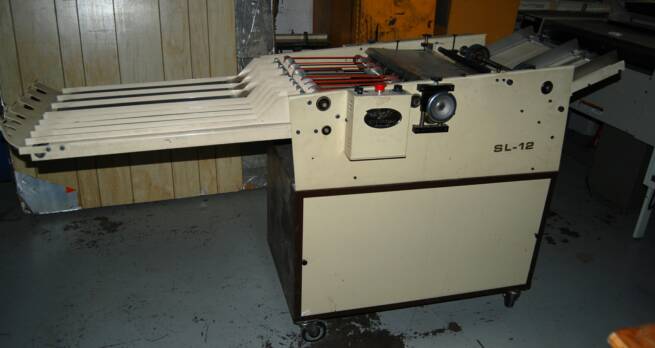

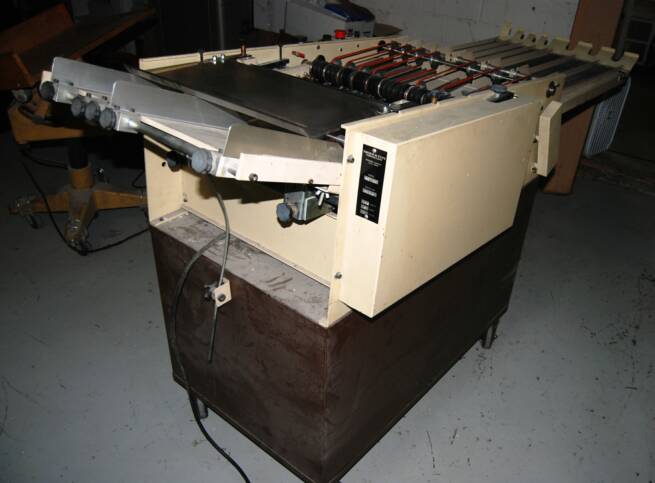

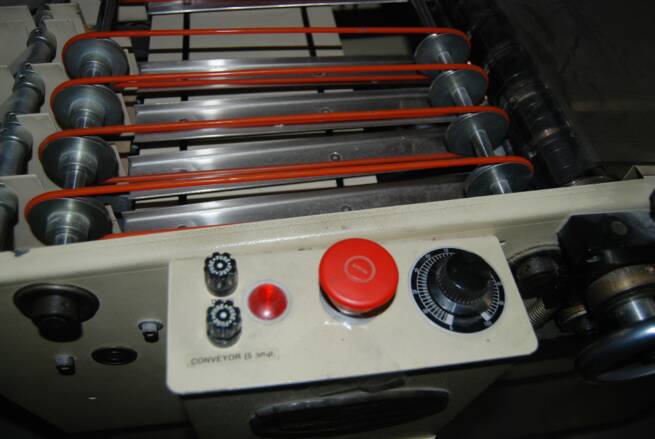

THERMOLTYPE SL 12 Business Card Slitter
You must close one Thumbnail to open another.
You must close one Thumbnail to open another.

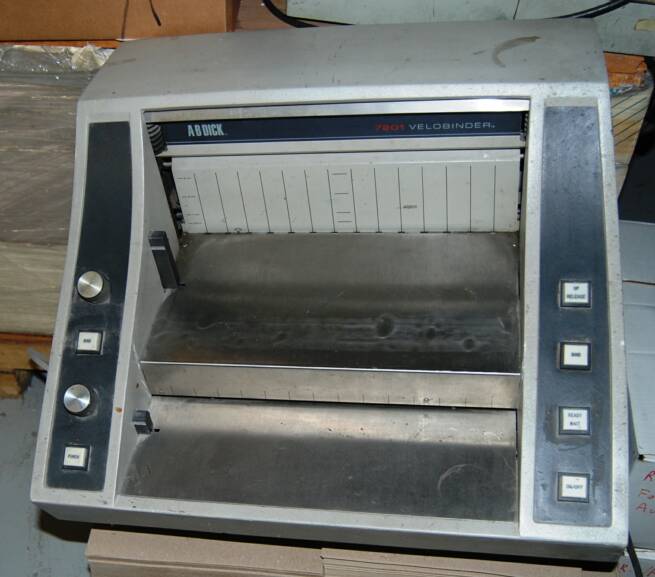

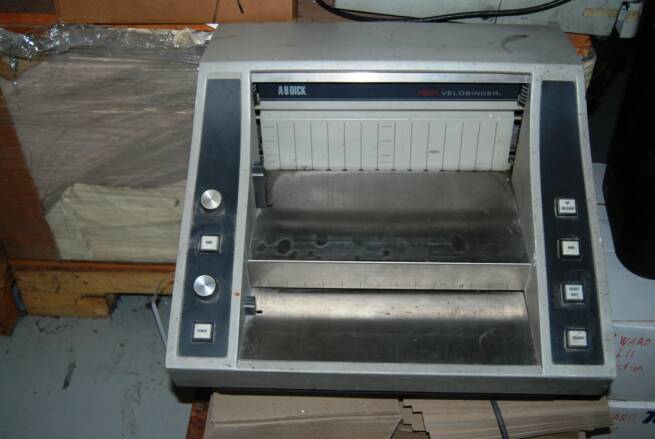

VELOBIND 7501
3" Model
Punch up to 15 sheets
Seals 1, 2 and 3" Strips
8.5, 11 and 14" binding

   Assets are sold on a first come basis, no reasonable offer refused, all items must be sold
   Assets are sold on a first come basis, no reasonable offer refused, all items must be sold
   Assets are sold on a first come basis, no reasonable offer refused, all items must be sold

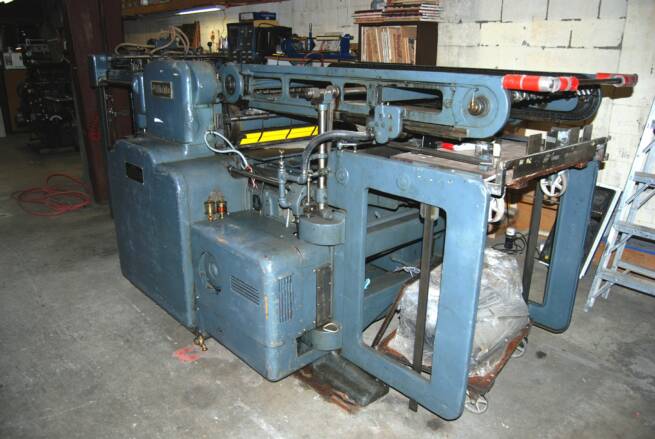

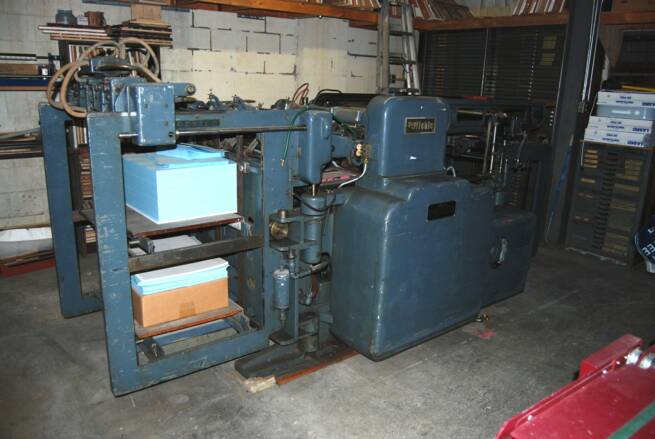

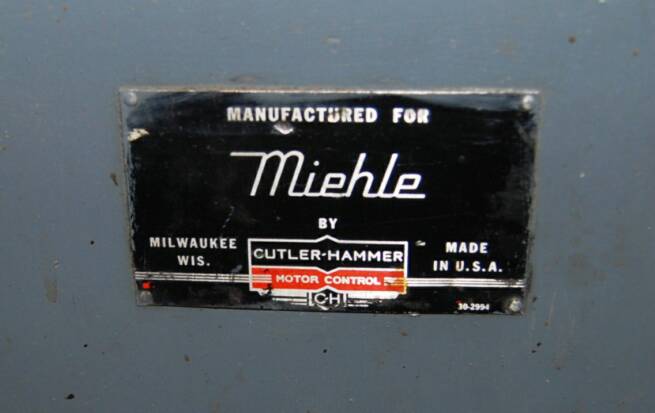

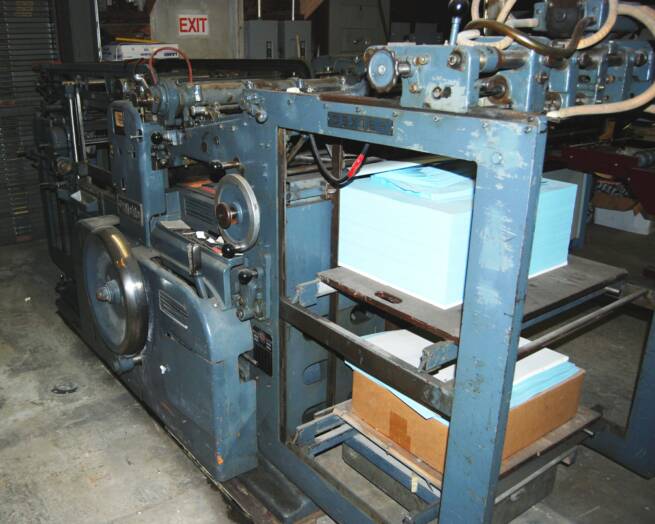

Meihle Die Cutter

23x29 Sheet Size
30" High Pile
High Pile Delivery
5000 Sheets per hour
Variable Speed
You must close one Thumbnail to open another.
You must close one Thumbnail to open another.

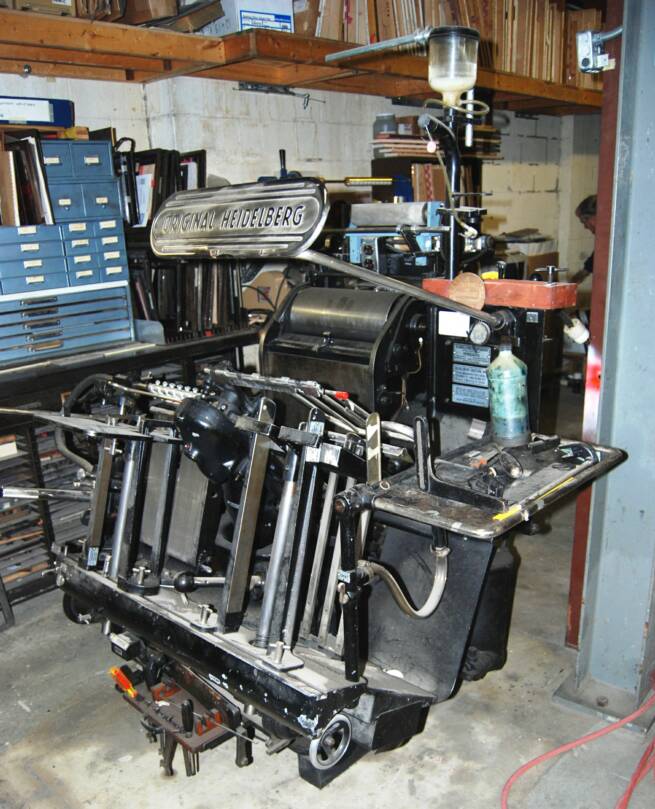

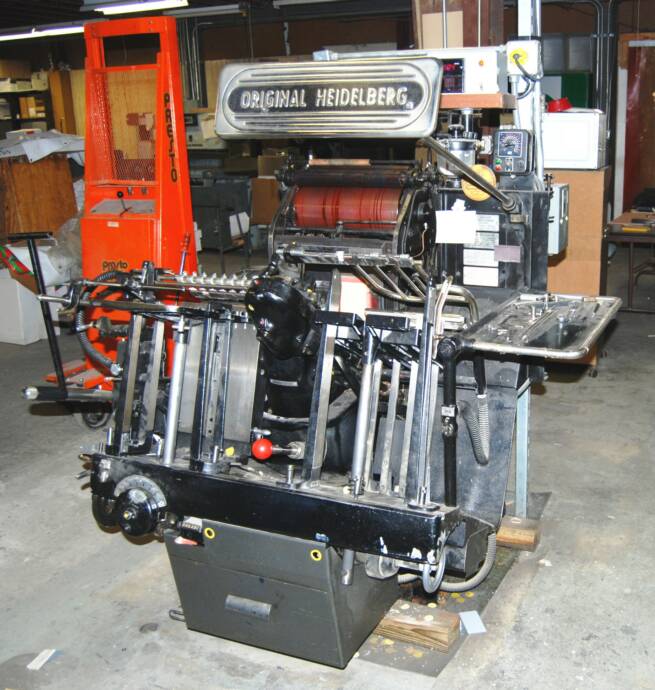

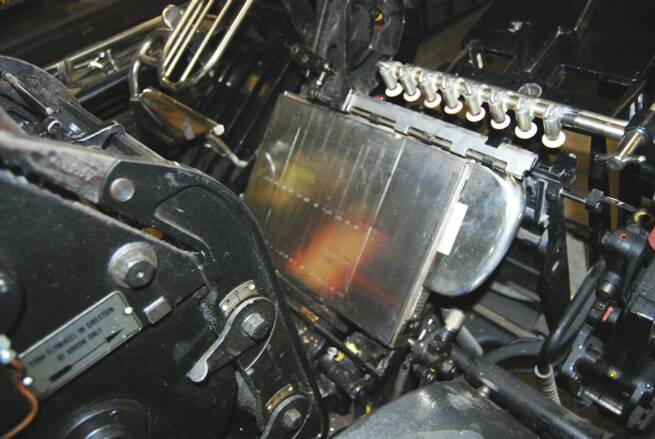

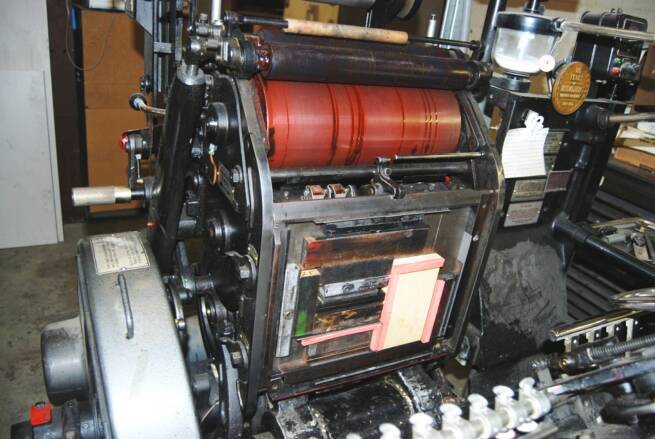

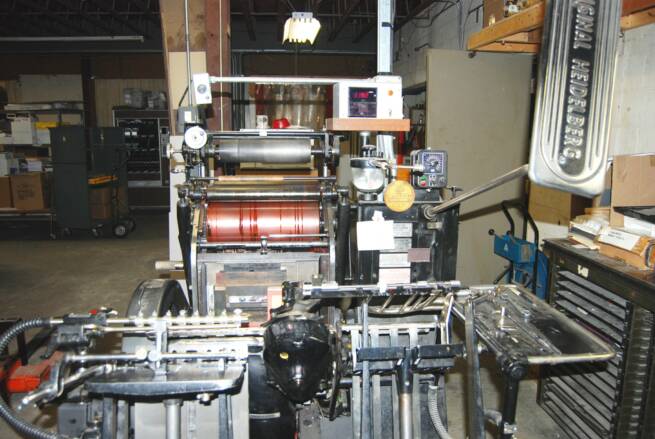

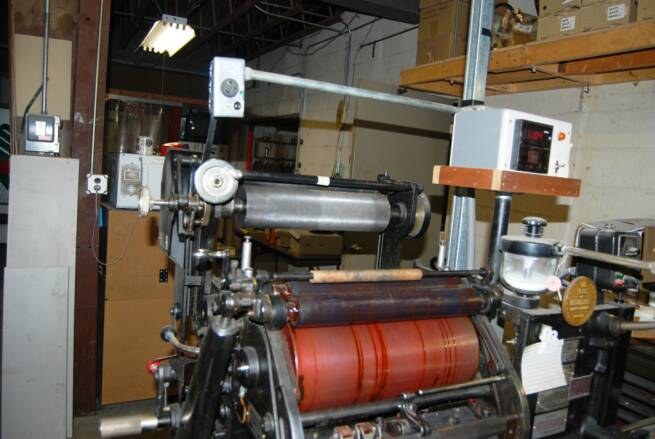

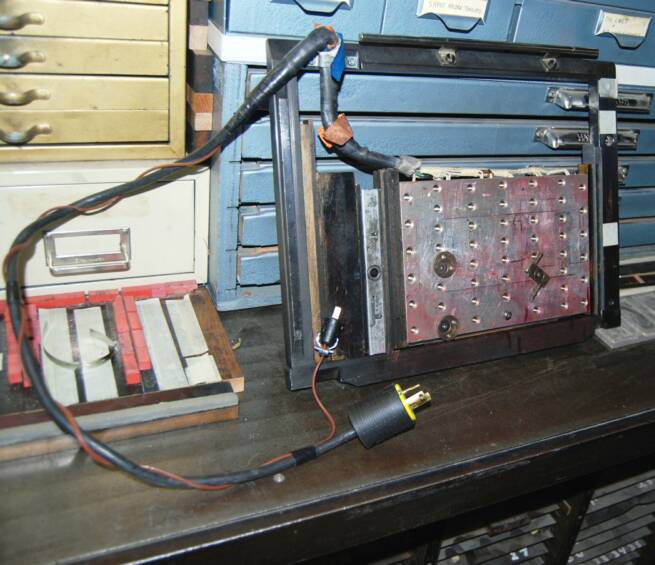

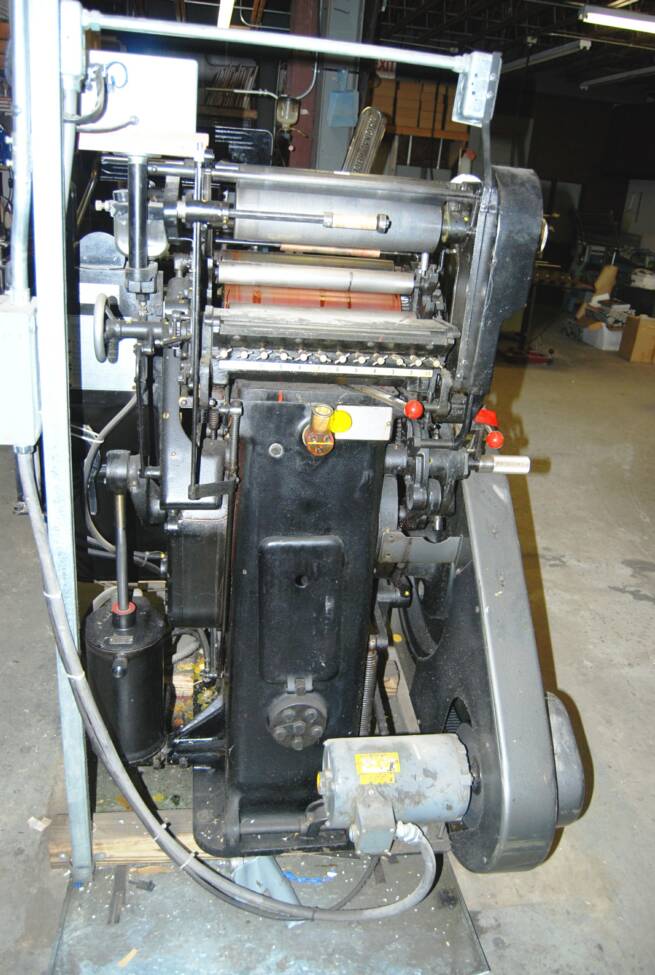

Hiedelberg Windmill
Sheet Size 10x15
Single Pull Foil
Foil Stamping
Heat Embossing
Die Cutting

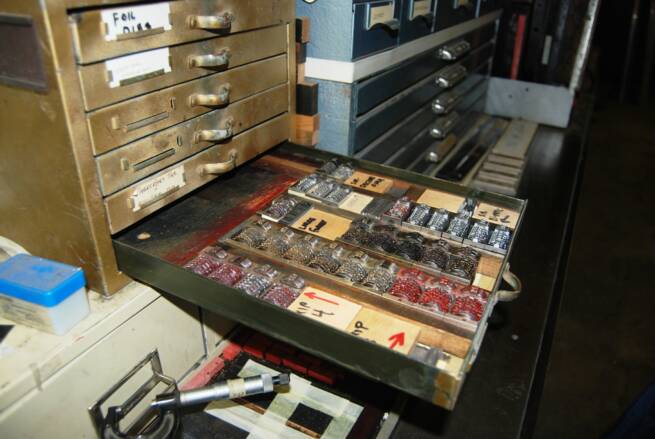

Conventional Numbering
Crash Imprinting
Letterpress Printing

Red Knob

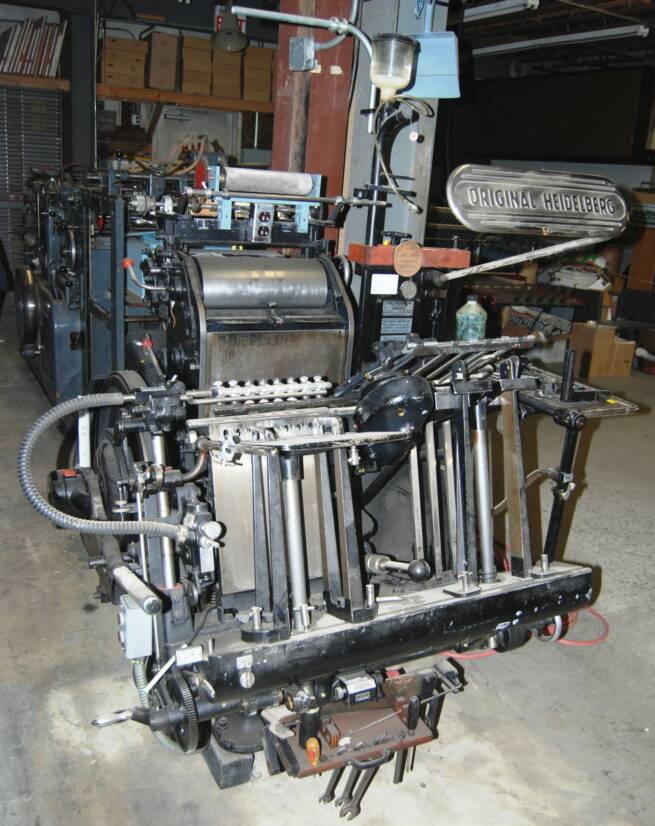

Hiedelberg Windmill
Sheet Size 10x15
Single Pull Foil
Foil Stamping
Heat Embossing
Die Cutting
Conventional Numbering
Crash Imprinting
Letterpress Printing
   Assets are sold on a first come basis, no reasonable offer refused, all items must be sold
   Assets are sold on a first come basis, no reasonable offer refused, all items must be sold
   Assets are sold on a first come basis, no reasonable offer refused, all items must be sold
You must close one Thumbnail to open another.
   Assets are sold on a first come basis, no reasonable offer refused, all items must be sold
   Assets are sold on a first come basis, no reasonable offer refused, all items must be sold
   Assets are sold on a first come basis, no reasonable offer refused, all items must be sold
   Assets are sold on a first come basis, no reasonable offer refused, all items must be sold
You must close one Thumbnail to open another.
You must close one Thumbnail to open another.
You must close one Thumbnail to open another.

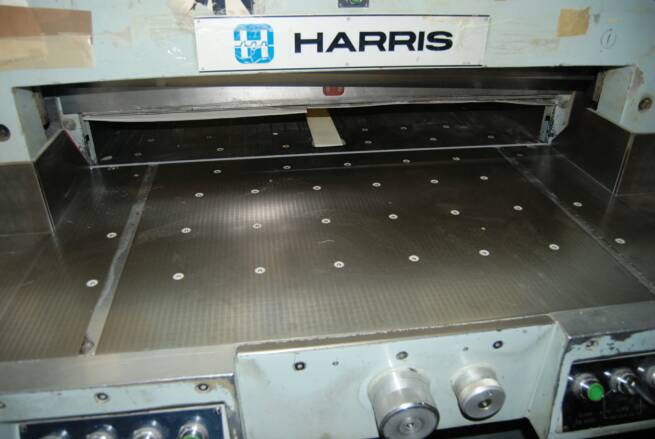

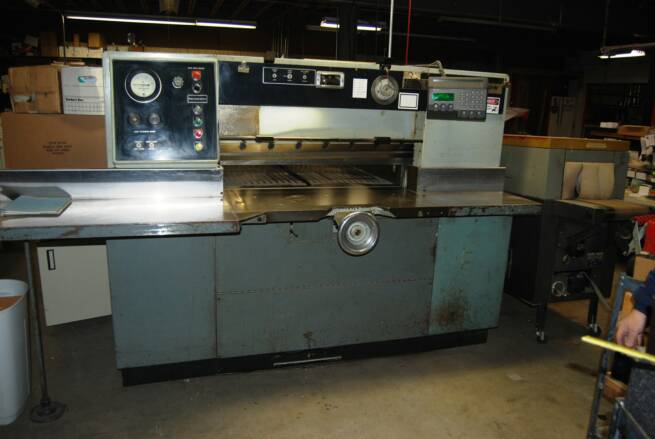

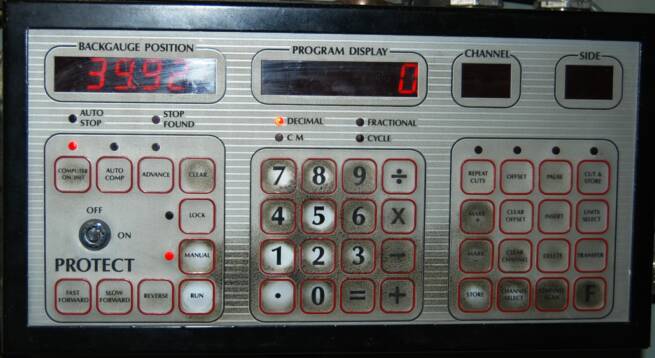

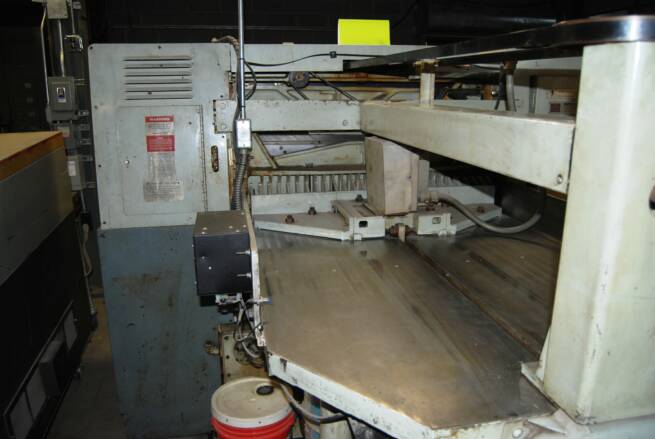

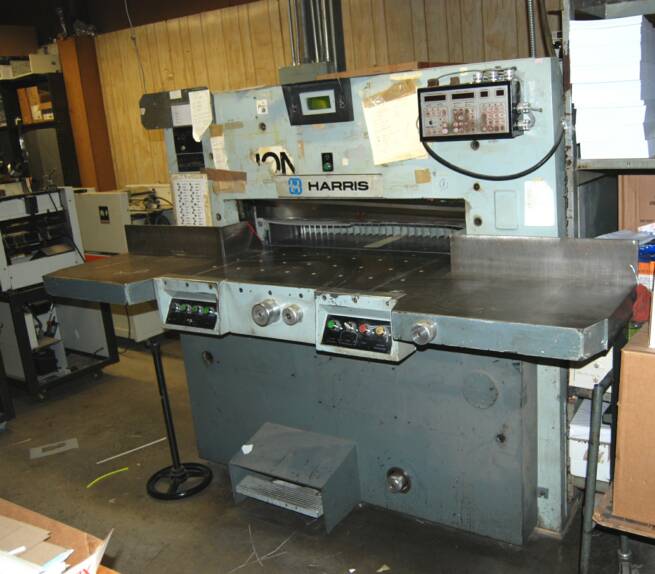

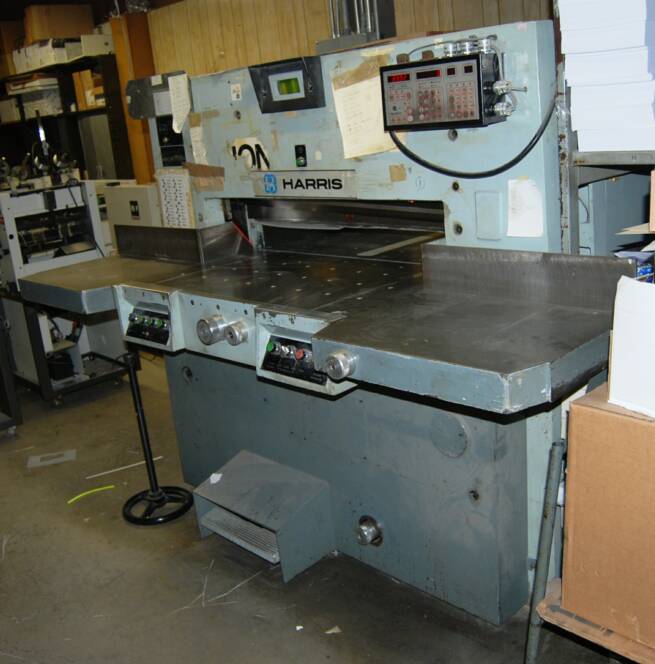

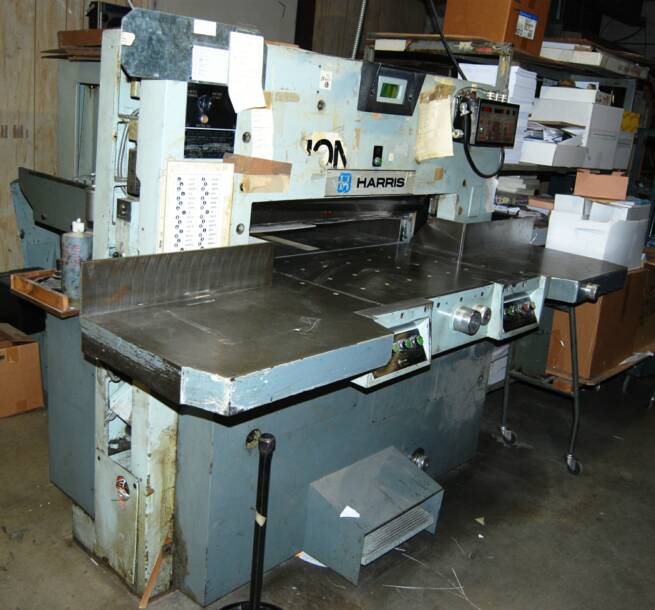

HARRIS 40" Paper Cutter
Hydraulic Clamp and Cut
Air Bed
Table Light
Cut Light
4500 lbs. Pressure
Lawson Program, 9999 program cuts

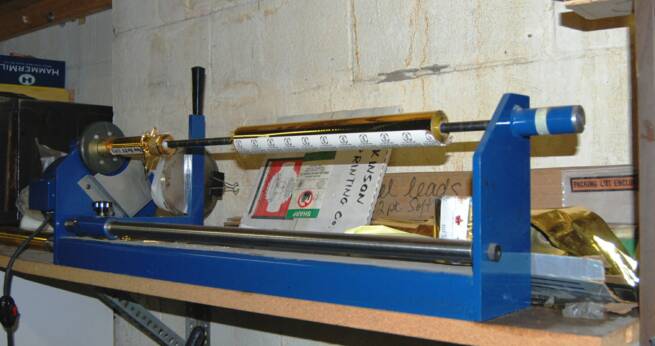

Foil Cutter go to: http://www.thermotype.com/foilcutter.html

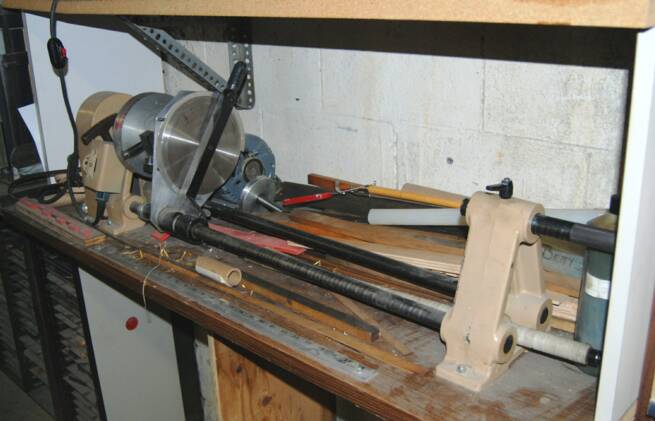

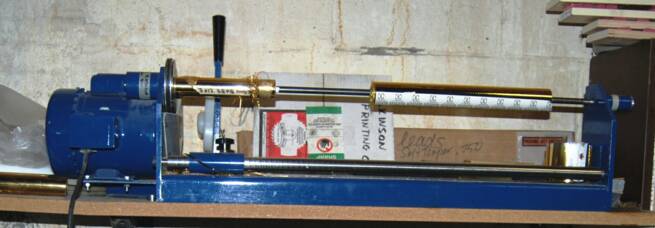

THERM-O-TYPE Foil Cutter, Foil Cutters can handle
rolls up to 1,000 feet in length.

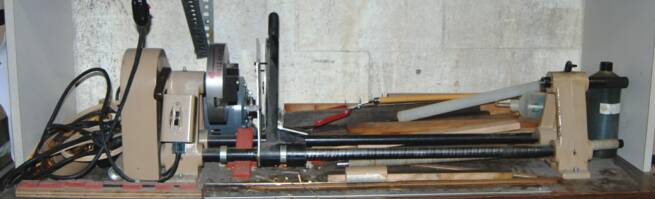

Foil Cutter

Foil Cutters can handle
rolls up to 1,000 feet in length.

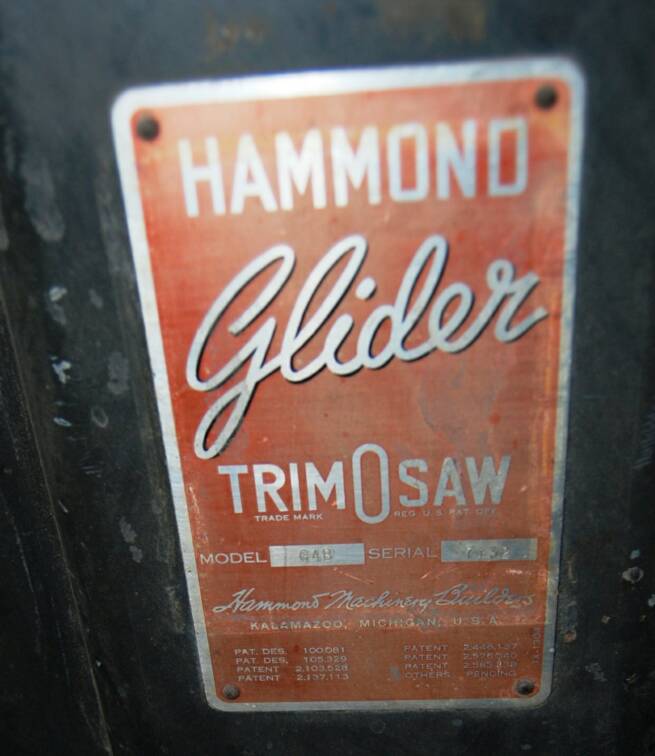

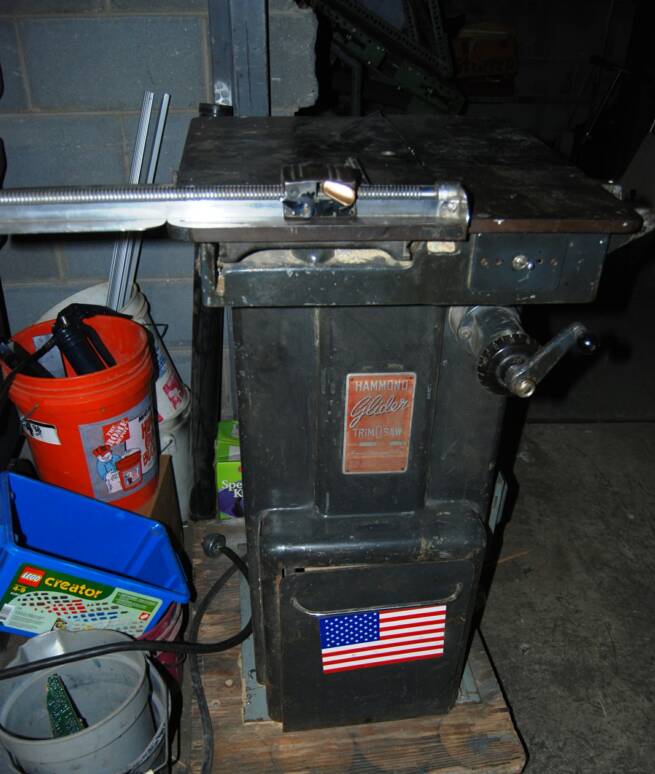

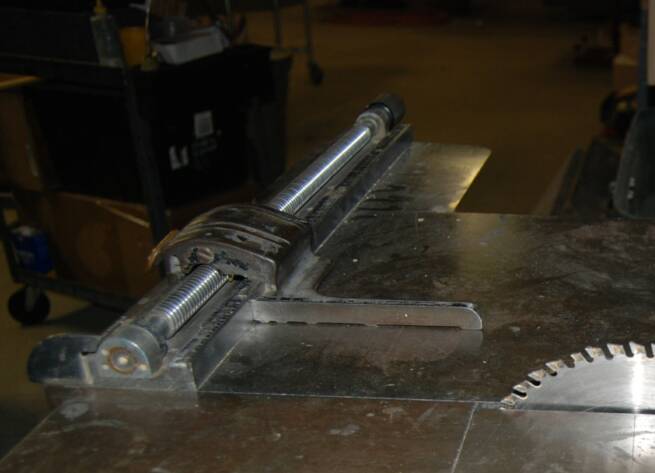

Hammond Glider
Carbide Blade
Lead Saw
Micro Adjustments

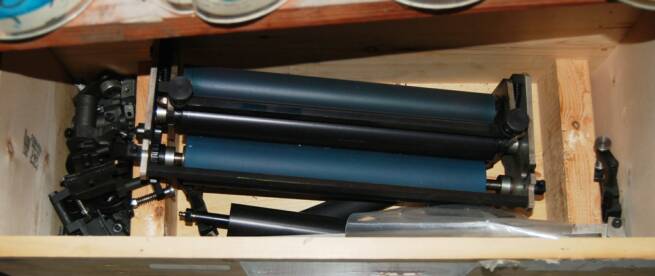

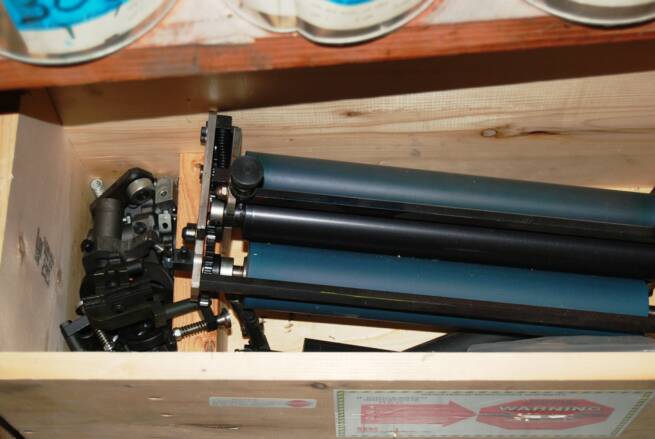

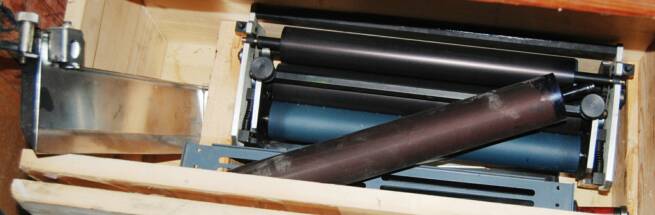

Crestline Roller System for 3302
For More Information Go To:

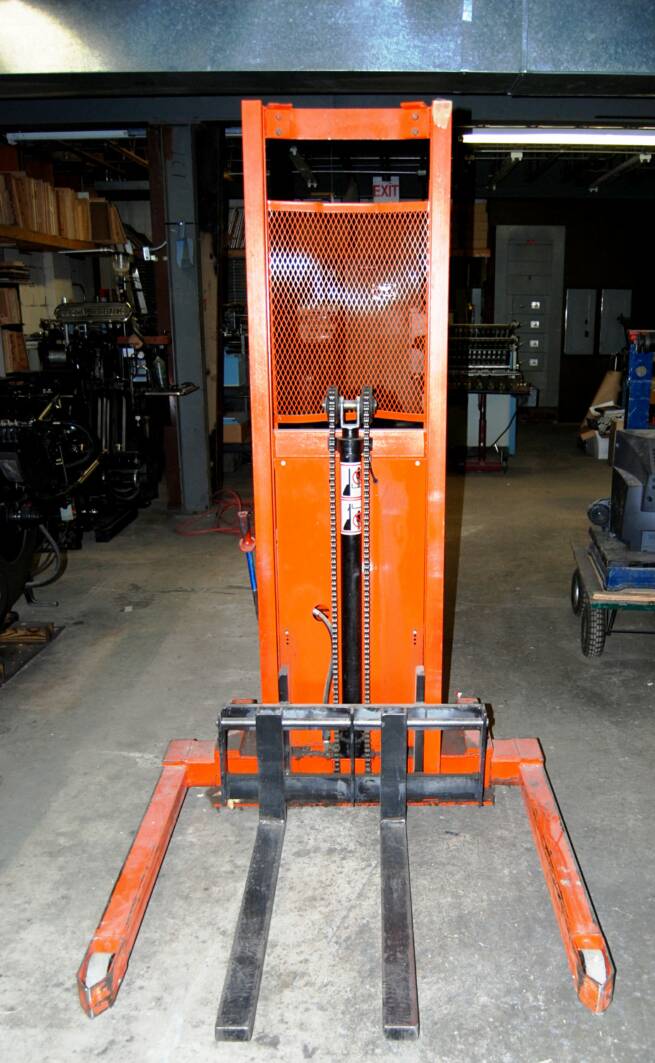

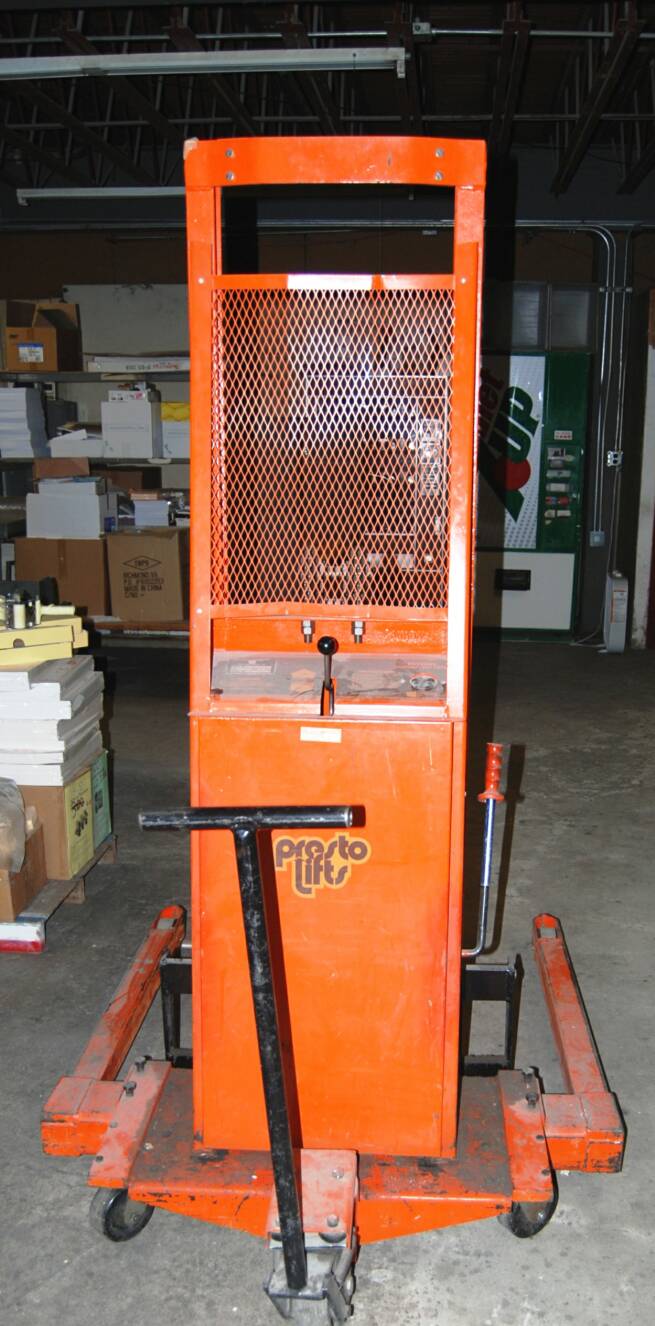

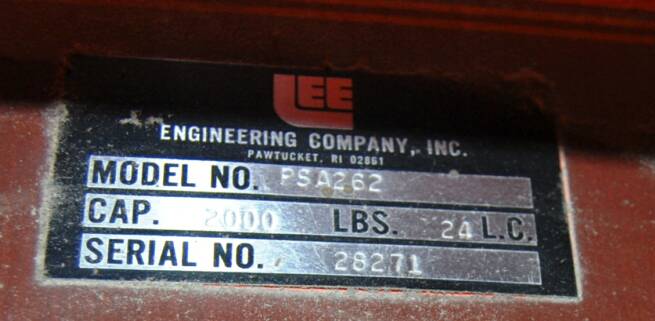

Pressto Lift

Manual Pull Cantilever
48" Forks
2000 lb Capacity
Adjustable Forks
12 Volt System
Built In Charger

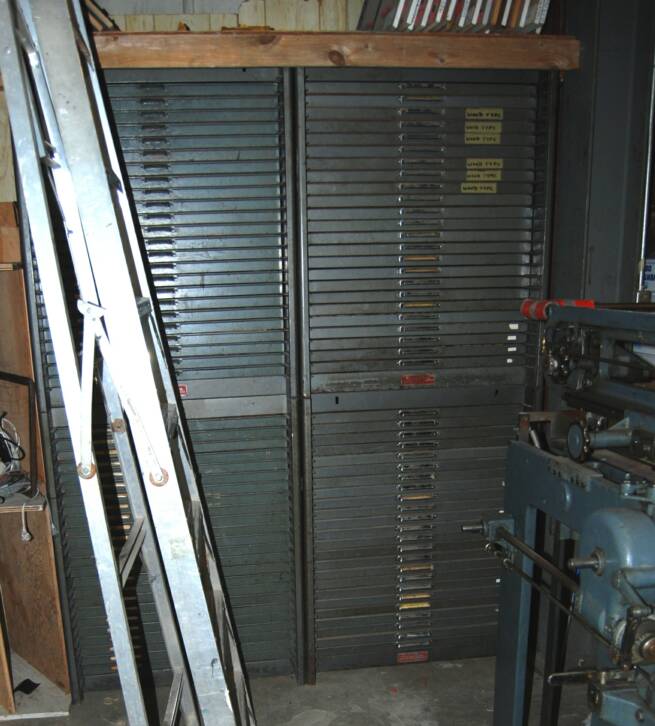

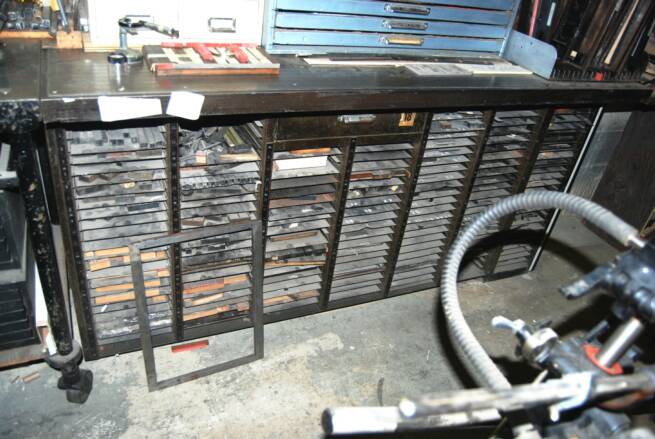

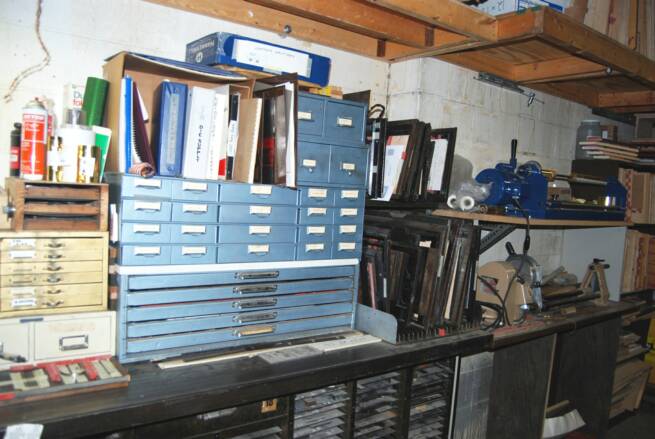

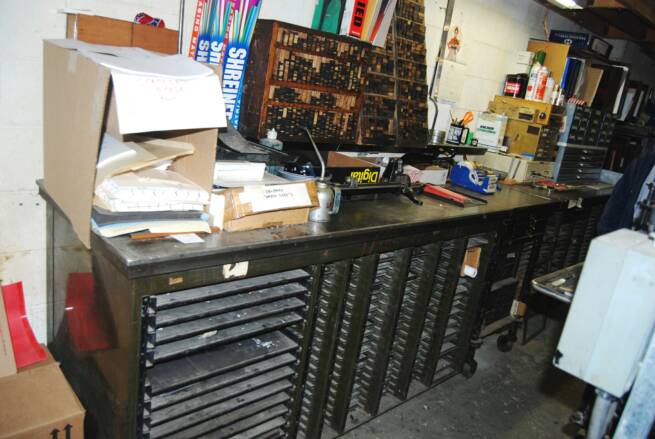

Die Cabinets
Steel Top
Die Drawers

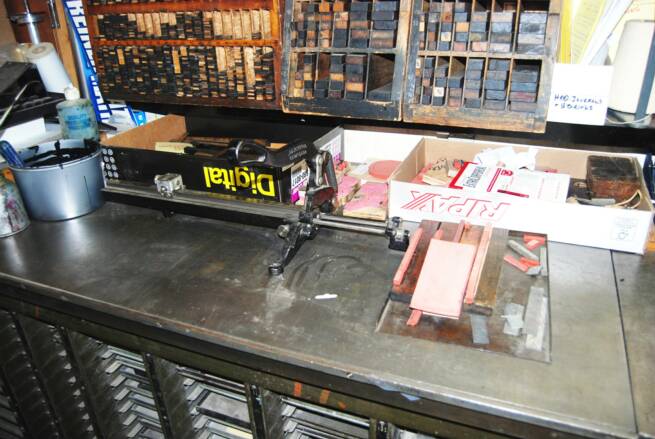

Die Cutting Tools
Various Die Blocks
