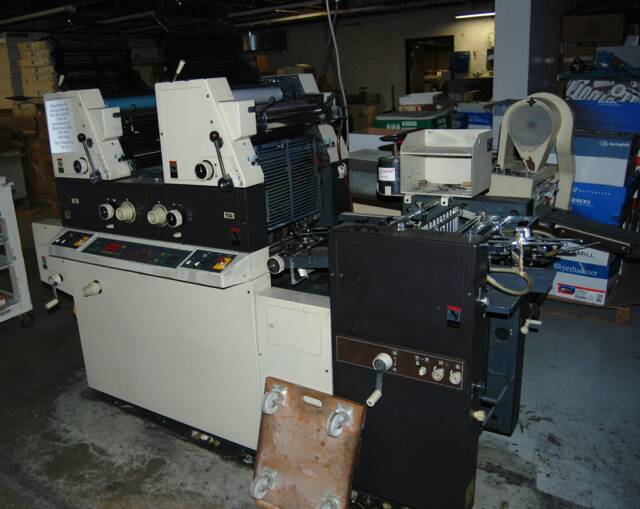

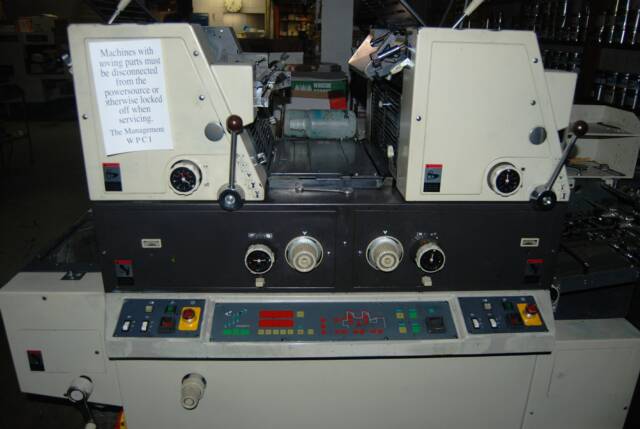

RYOBI 3302
Number of Printing Units 2
Max. Paper Size 340 X450 mm (13.39" x17.72")
Min. Paper Size 90 x 130 mm (3.54" x 5.12") 90 x 100 mm
(3.54" x 3.94")
Max. Printing Area 330 x 438 mm (12.99" x 17.24")
Paper Thickness 0.04 - 0.3 mm (0.0016" - 0.012")
Printing Speed 3,000-10,000 S.P.H.
The local conditions, ink, stock, and printing plate types, and printing quality required will affect the maximum printing speed.
Plate Size 352 x 485 mm (13.86" x 19.09") (max. width) 335 x 485 mm
(13.19" x 19.09") 335 x 485 ± 1 mm
(13.19 x 19.09" ± 0.04")
metal plate: t=0.15 mm
polyester plate: t=0.2 mm
Dimensions (L x W x H) 2,200 x 965 x 1,560 mm
(7'3" x 3'2" x 5'2") 2,329 x 873 x 1,583 mm (7'8" x 2'10' x 5'2")
