Product Category Plate Master
Manufacturer A B Dick
Model DPM 2340
Physical specifications:
Dimensions (W x H x D) 1 37 x 114 x 71.1 cm (54” x 45” x 28” without Plate Catcher). 137 x 114 x 104 cm (54” x 45” x 41” with Plate Catcher).
Weight 306 kg / 675 lbs.
Power consumption (without accessories) 1400 W.

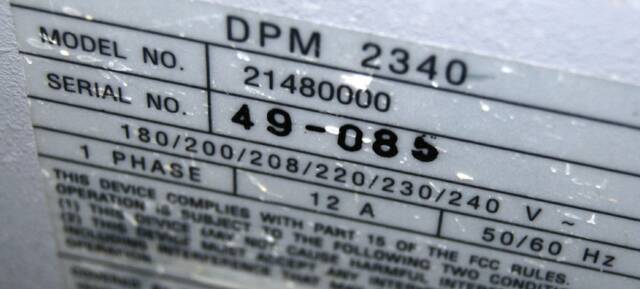

Rated voltage 180 / 200 / 208 / 220 / 230 / 240 VAC, 50/60 Hz.
Rated current 12 Amp.
Main circuit breaker 15 Amp / 250 V
In addition, the DPM 2340 has internal fuses that may only be changed by authorized service personnel.
Ambient temperature
18 to 27° C (65 - 80° F).
Relative humidity 30 - 70%
Noise level Less than 70 dBA.
Data interface Differential Fast SCSI-2.
